Overview

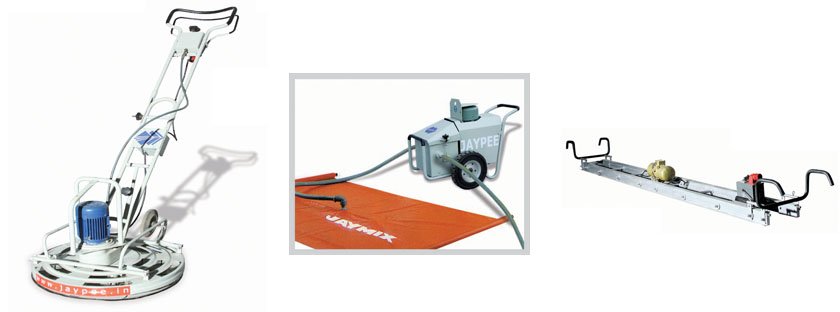

The Jaymix method is a system for having high quality long strip casting of floors at an affordable cost. It removes the excess water from the green concrete by vacuum process enabling the water-cement ratio to reduce drastically. The wet concrete is compressed by atmospheric pressure and the excess water is squeezed out of the concrete by vacuum-dewatering. The system, bringing compactness to the concrete also improves the compressive strength, density and the resistance to water penetration.
Technical Data
Vacuum Pump
Mounted on transportation trolley. Powered by 7.5 HP Electric Motor. An area of 35 sqm. can be dewatered one single operation.
Specification of Vacumm Pump
Power |
10 HP Electric Motor |
Vacuum Pump Capacity |
1800 Liters/m3 @ 70% vacuum |

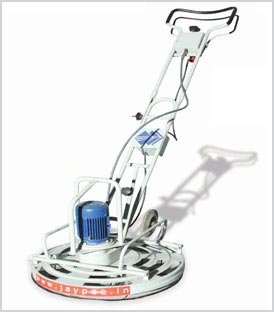

Power Floater cum Power Trowel
Weight (approx.) |
75 kg |
Length |
1450 mm |
Height |
2220 mm |
RPM |
110 |
Working Diameter |
860 mm |
Powered by |
3 HP Electric Motor |
Screed Board
Power |
1 HP 3 Phase Electric Vibrator |
Board Dimension |
4200 x 375 x 150 mm |
Filter Mat & Top Mat
Top mat is provided junction box & short hose of standard size 5mm*7m
Filter mat of 35 meter provided to be placed directly on green concrete.
