Overview

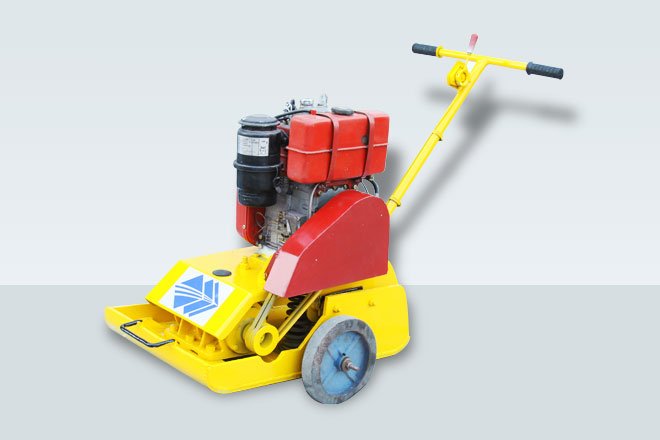

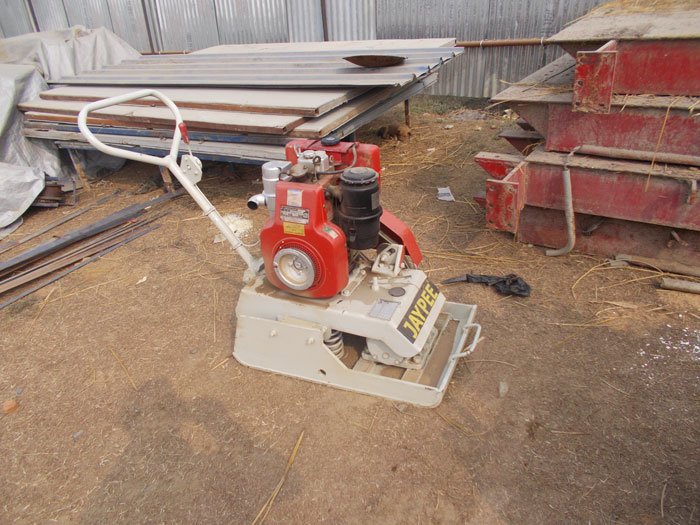

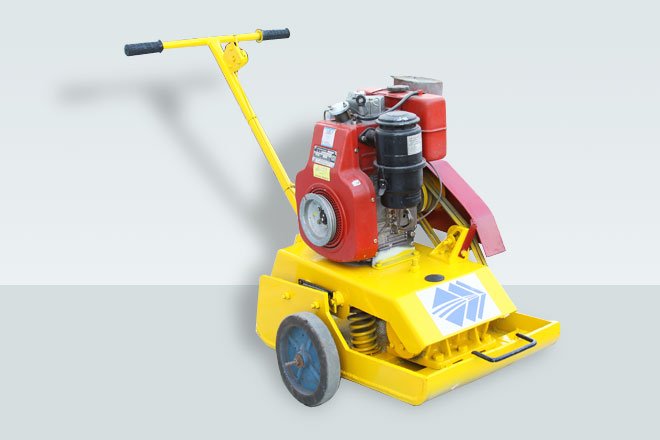

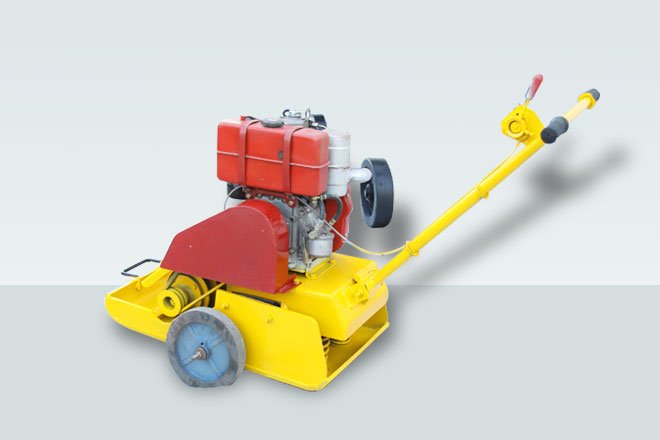

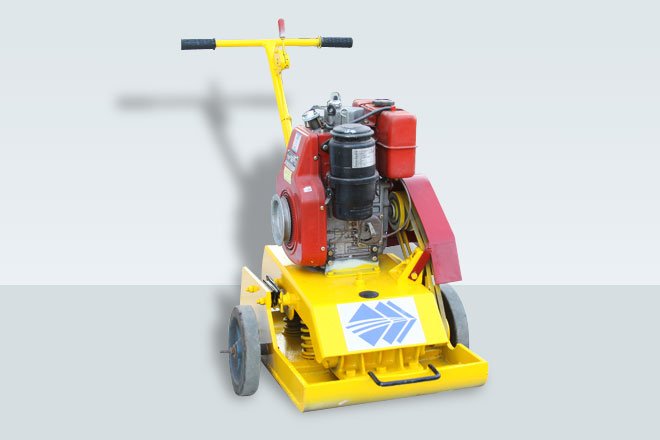

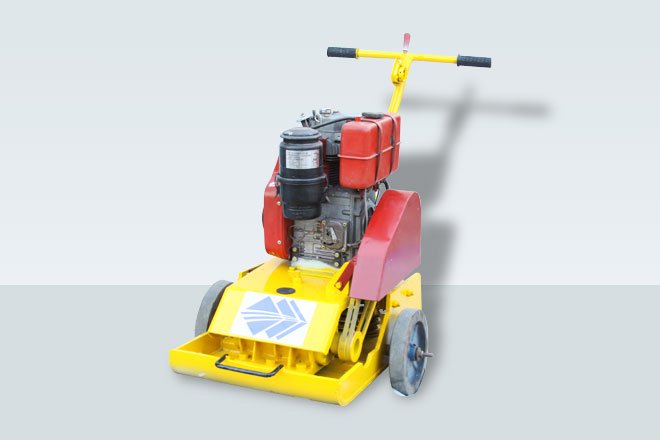

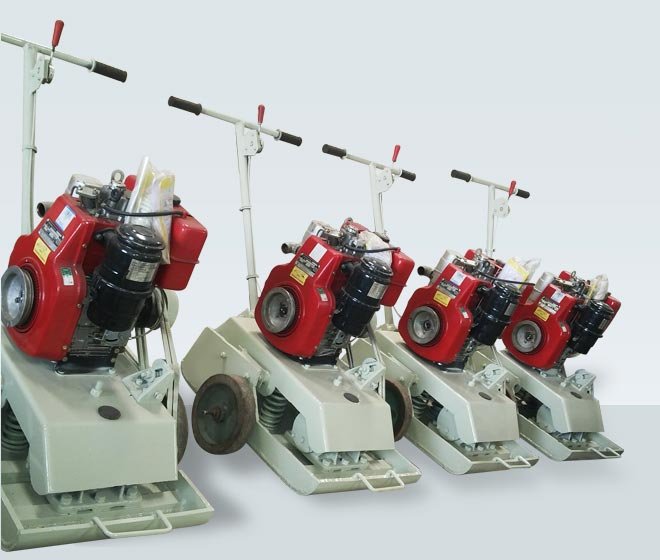

Jaypee® VC 25 Plate Compactor is a unique compaction machine which produces repetitive impact on soil, built robustly with extra thick base plate having travel speed of 20m/min.

Our compactors come with infinitely variable forward and reverse speed on a diesel engine.

Also available with electric motor.

TECHNICAL SPECIFICATION FOR VIBRATING EARTH RAMMER MODEL VC-25
Compaction capacity	6.8 tons
Impact force upto (approx)	3500 kgs
Vibration frequency	50 Hz
Depth effect (depending on type of soil)	16 inch
Travel speed (depending on type of soil)	upto 20 M/min
Gradient capability	upto 20%
Compacting plate size	780mm x 620mm x 490mm
Working area	5500 sq.ft.p/h.
Direction of travel	forward
*Powered by 5 H.P. Crompton Greaves electric motor
*powered by 4.4 H.P. graves air cooled diesel
