Passenger Cum Material Hoist



Overview

Cunstruction Hoist
General Passengers Hoist

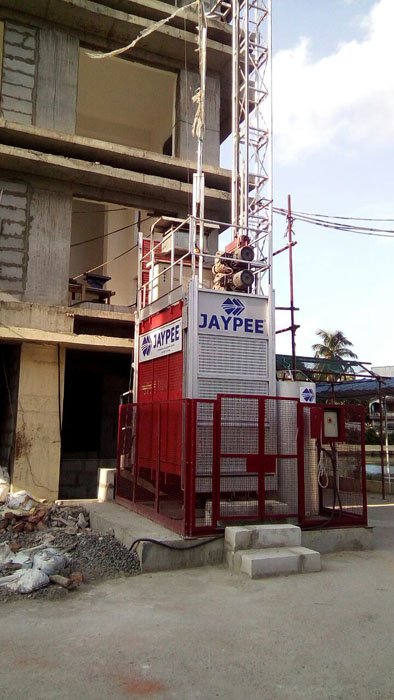

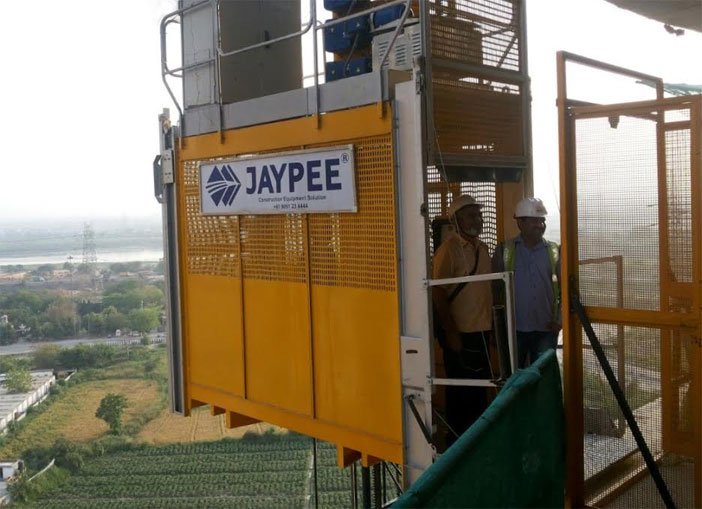

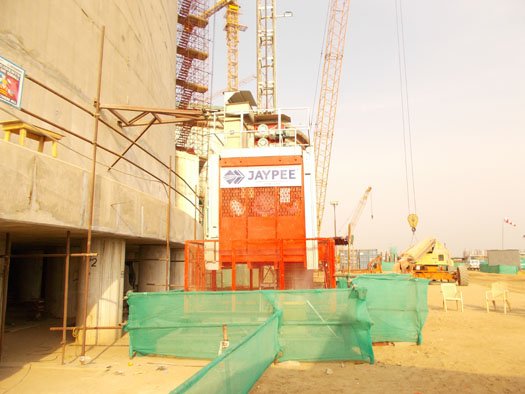

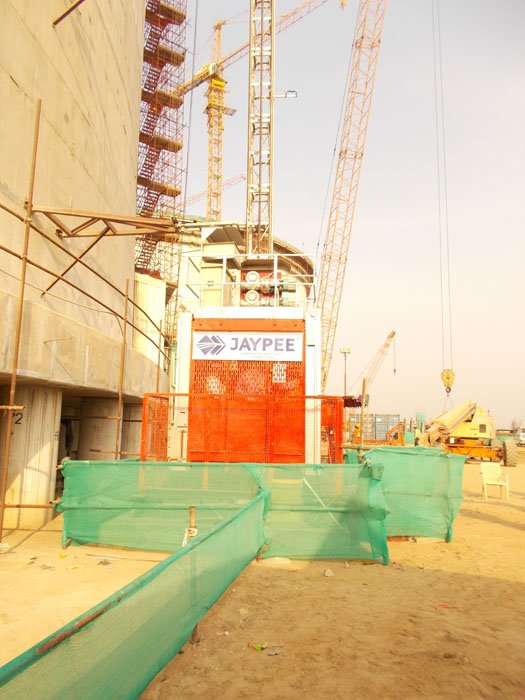

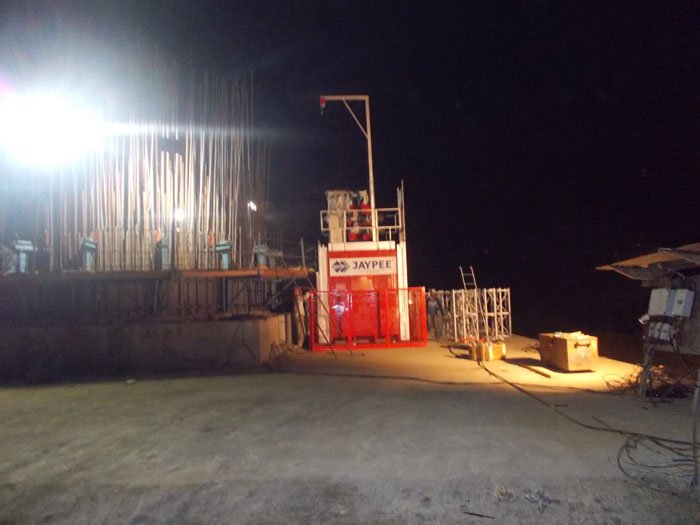

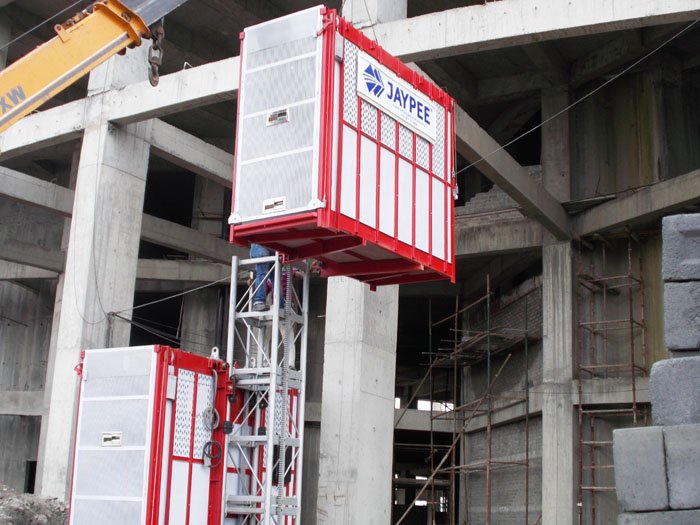

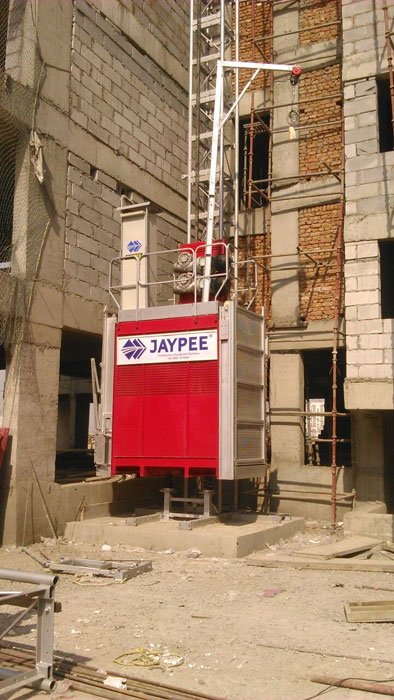

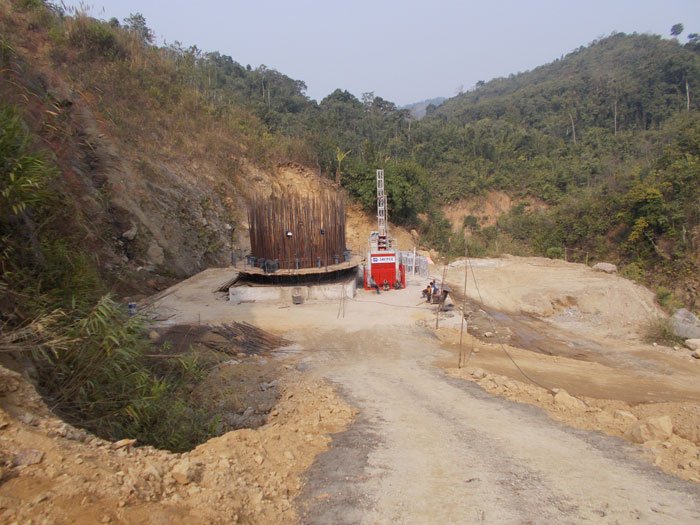

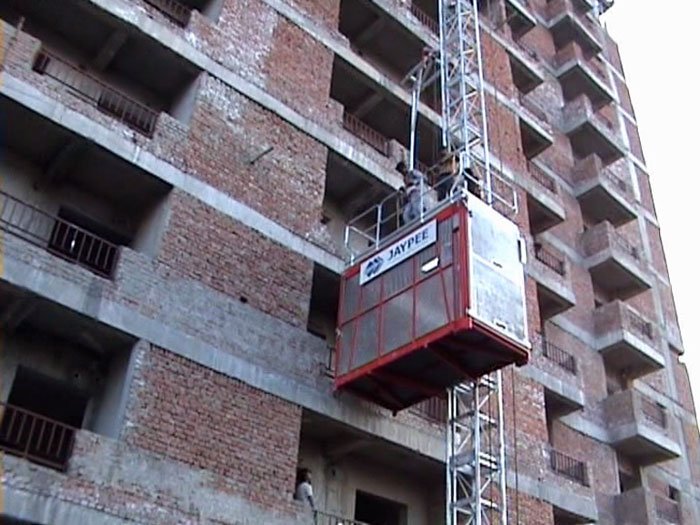

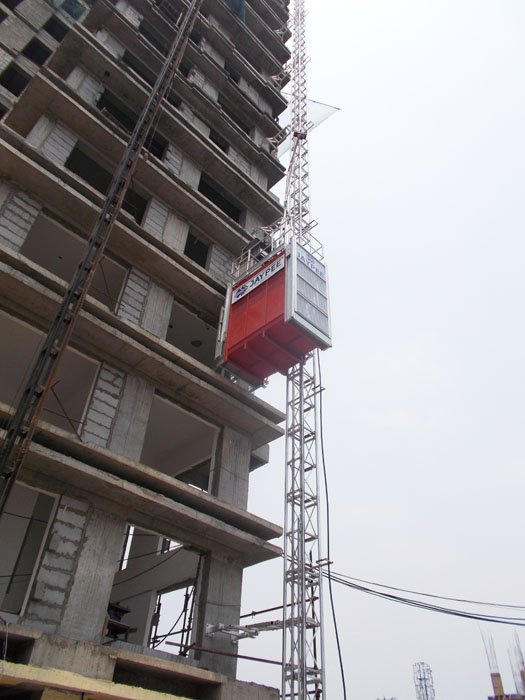

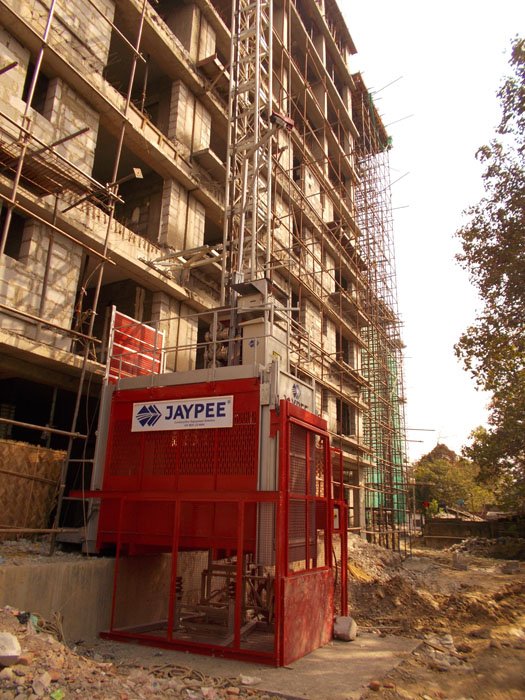

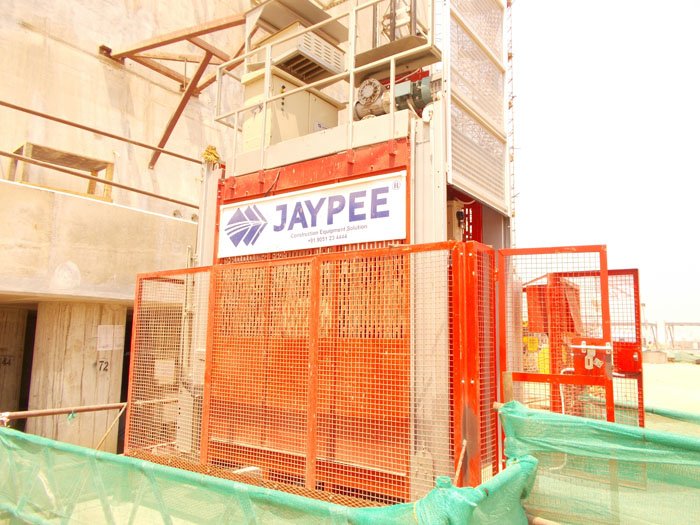

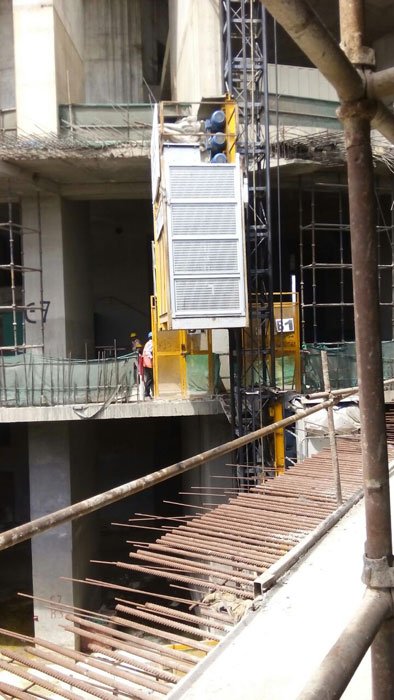

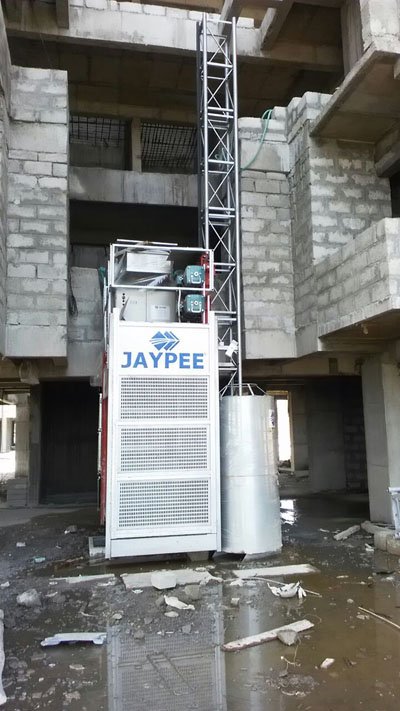

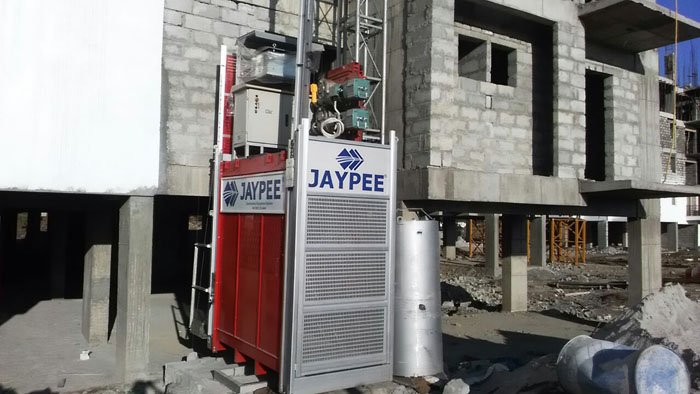

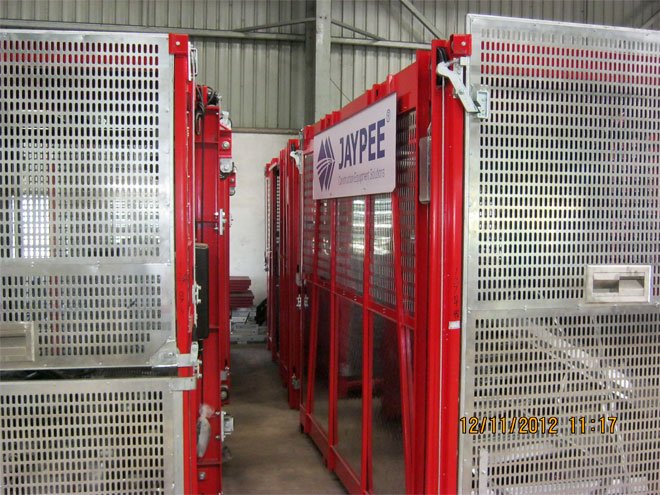

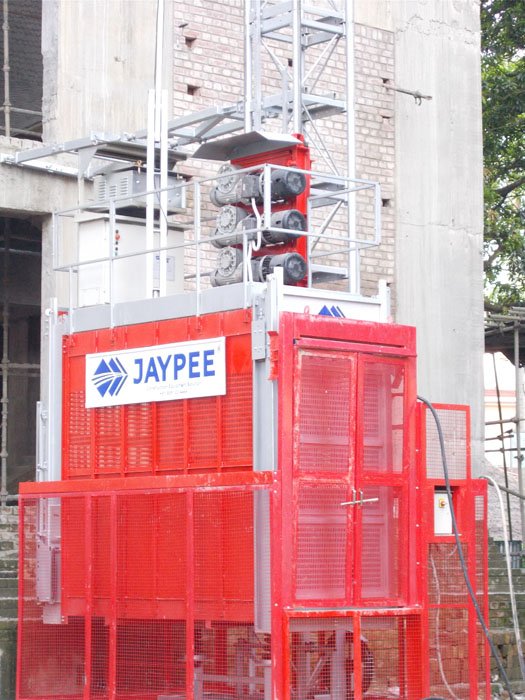

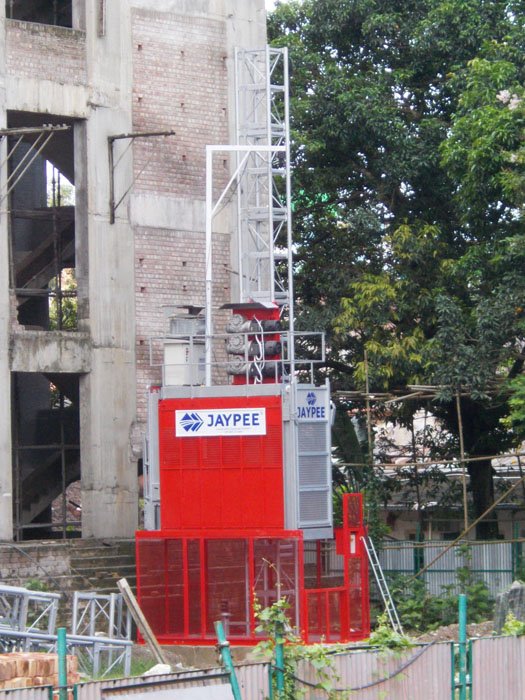

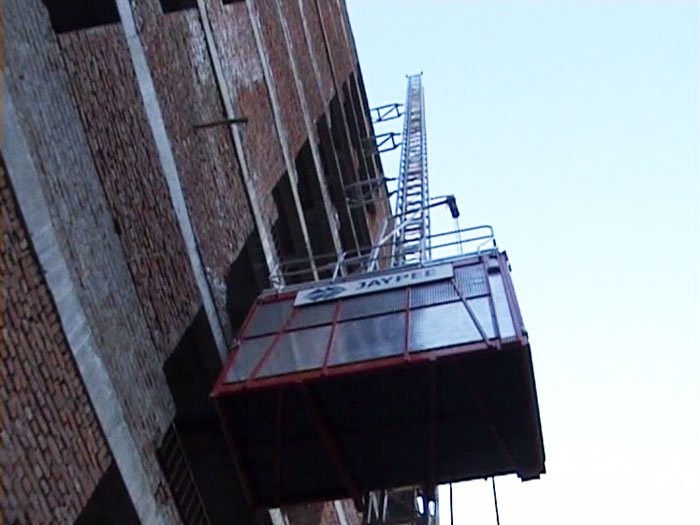

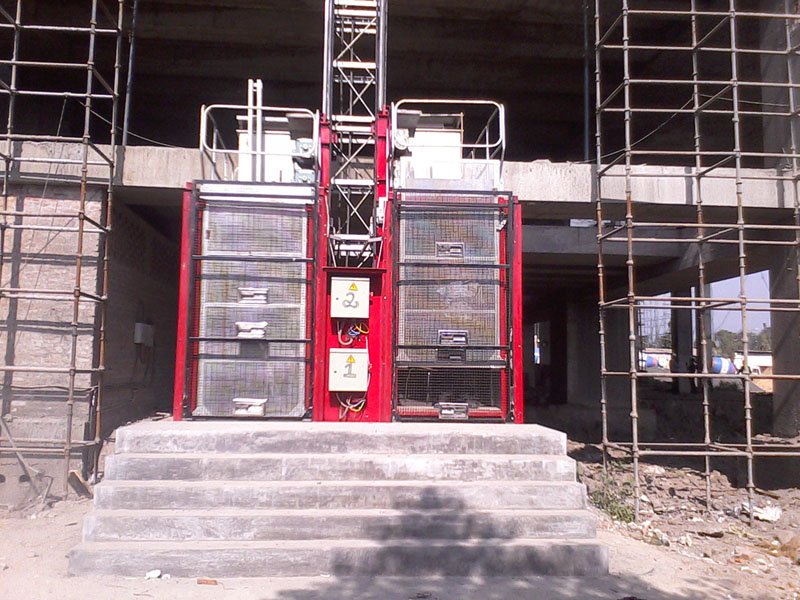

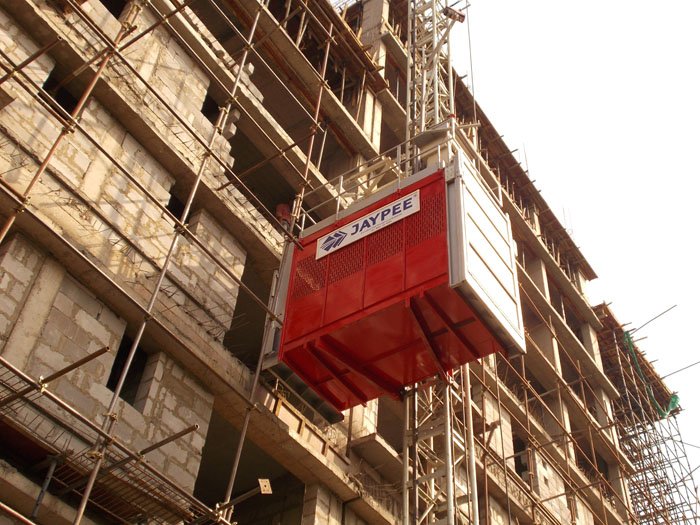

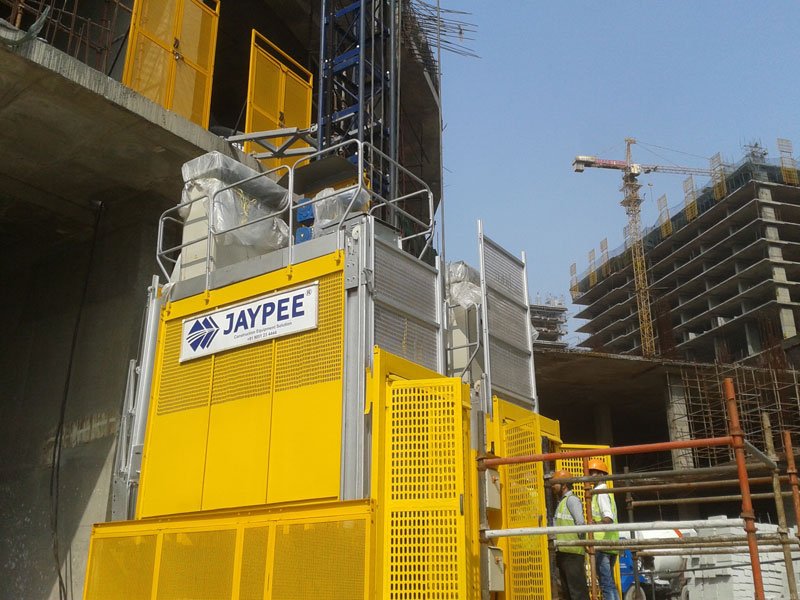

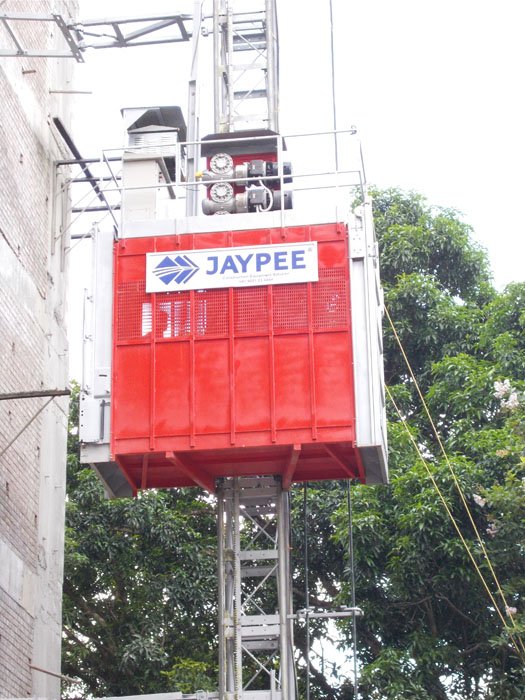

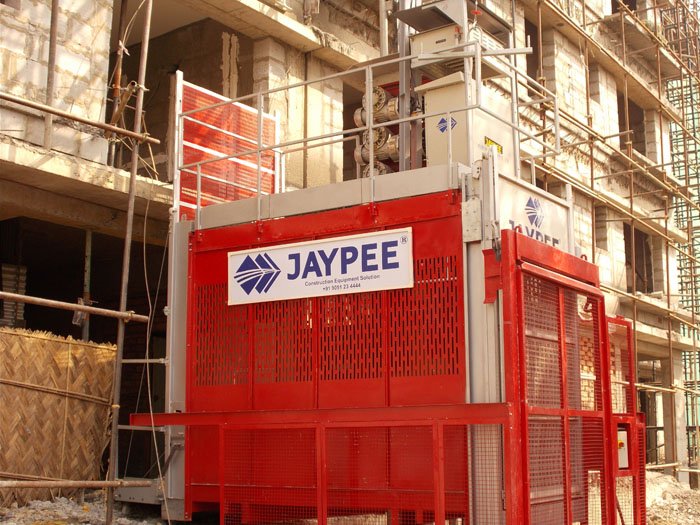

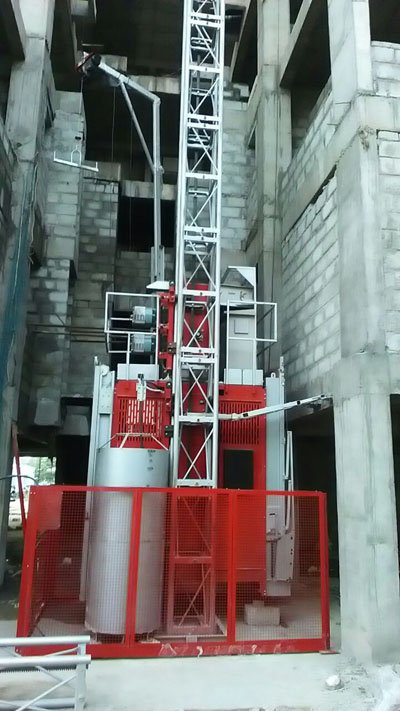

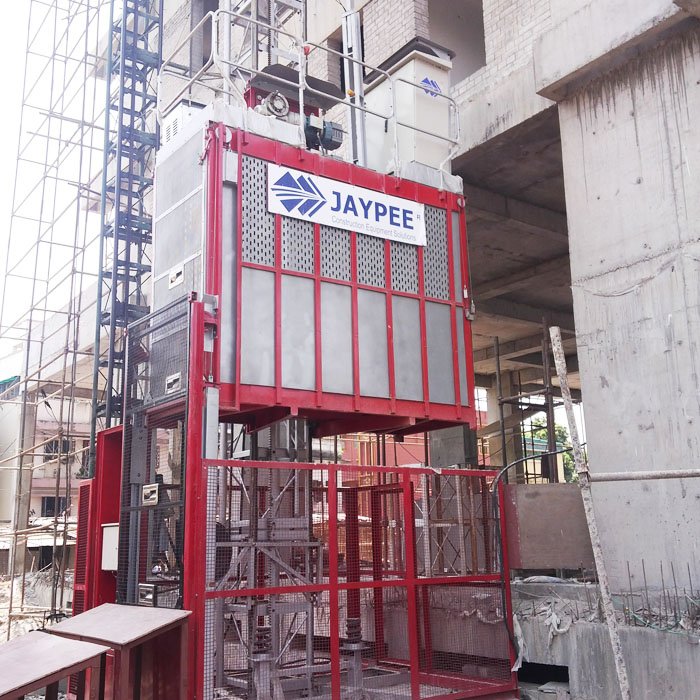

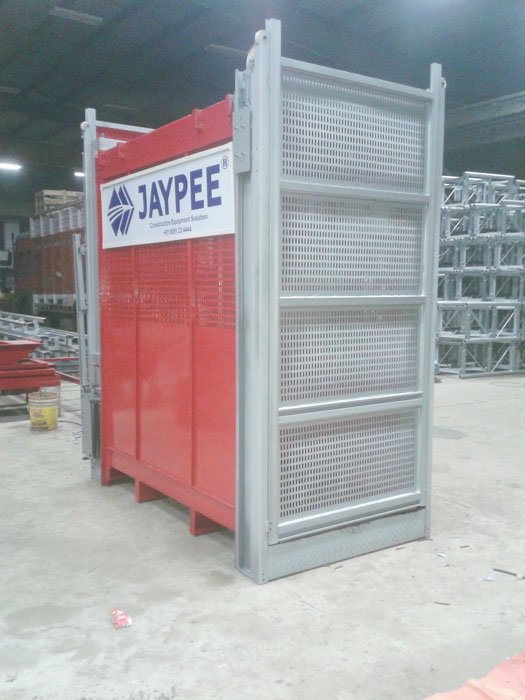

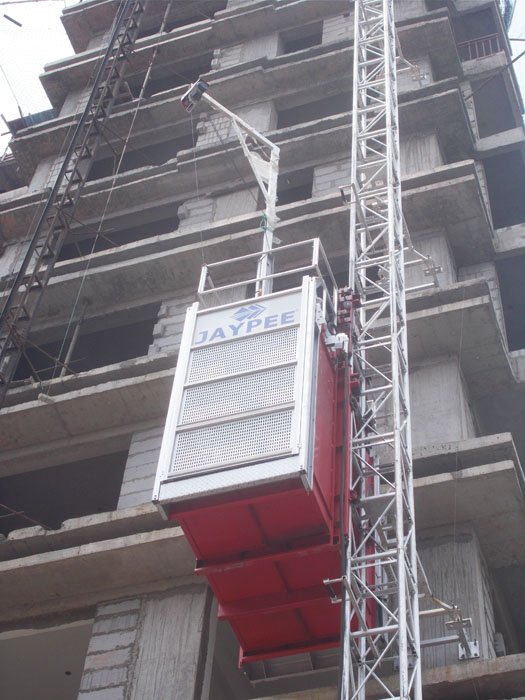

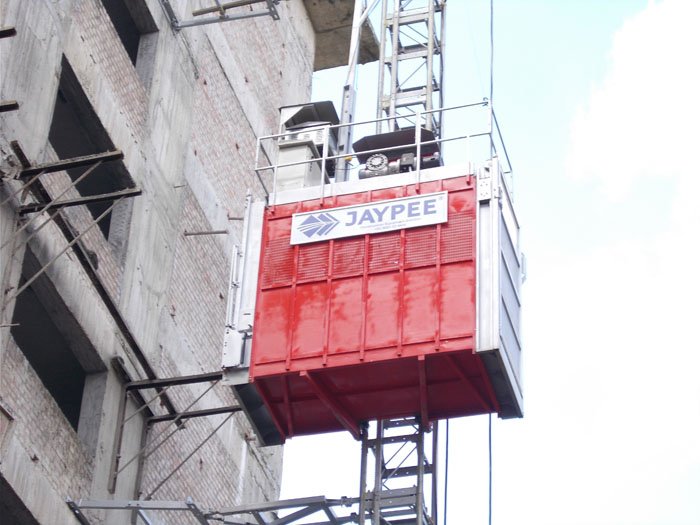

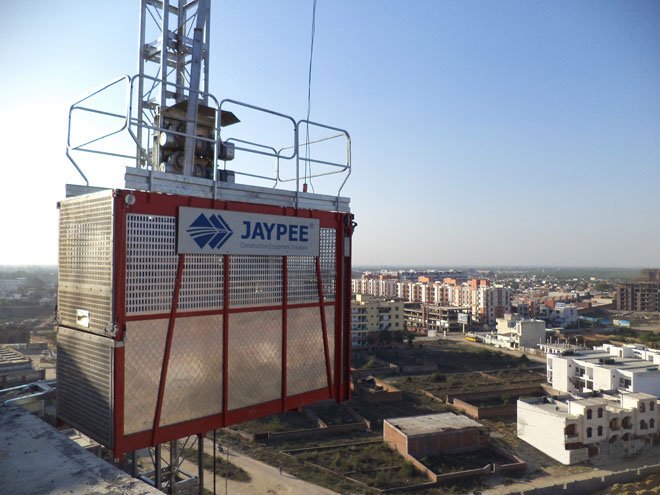

As a part of Man and Material Handling Solutions, Jaypee brings to your interest a wide range of Passenger and Materials Hoist. Brought to your service is a range which can lift up to 8000kg, with a lifting speed that can reach up to 96m/min and an attainable max. erecting height of 450m. These Productss can be used in various construction sites, power projects, metallurgical, mining, oil and chemical industries.

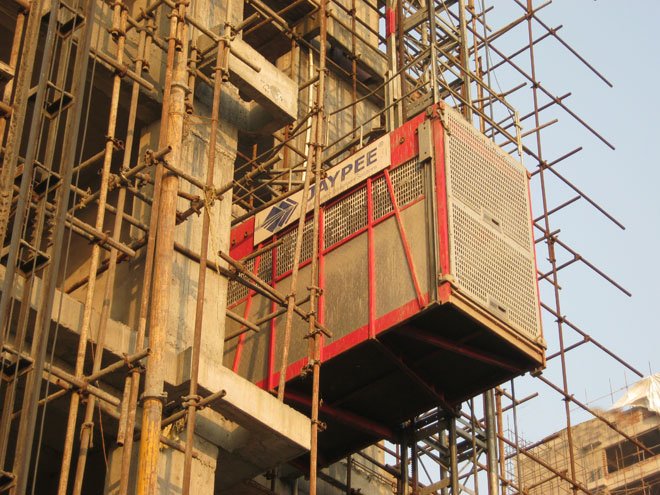

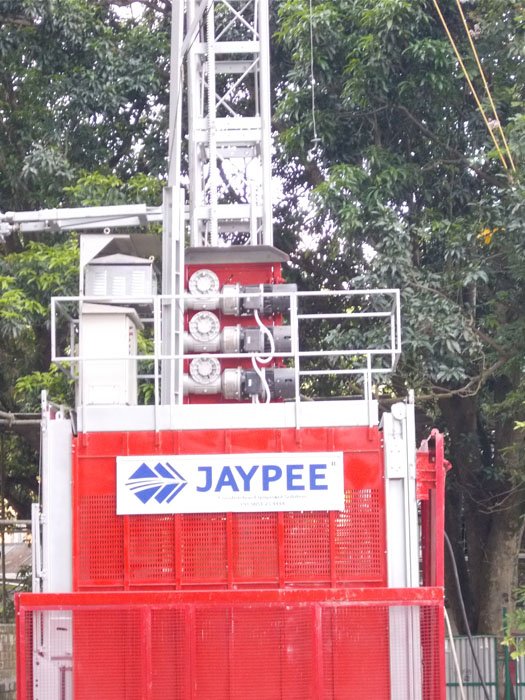

Our Cunstruction Hoists feature high quality materials and Productss and components from world renowned manufacturers. The Rack and Pinion adopts a specially processed material and heat treatment technique, prolonging the life of these parts. The mast section surface can be finished with paint spray, Parkerizing baking finish or hot galvanizing processing as per user requirements.

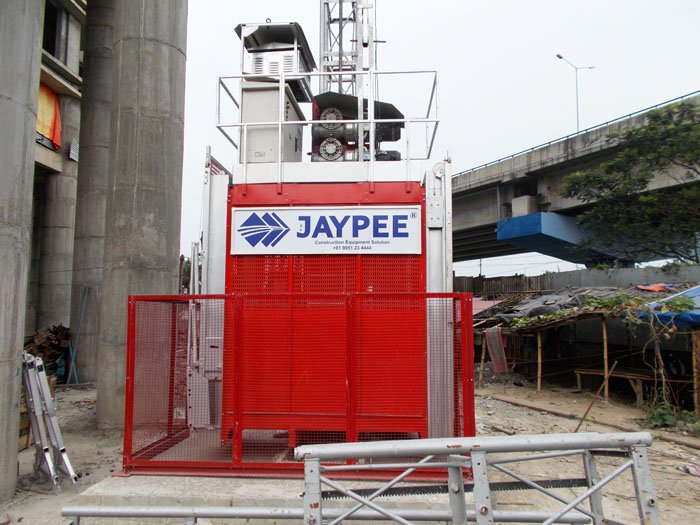

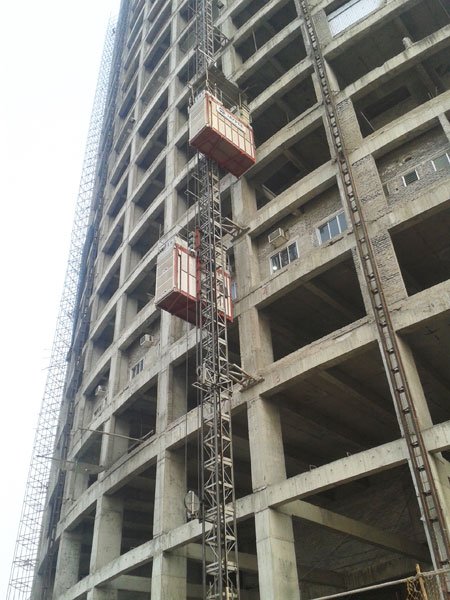

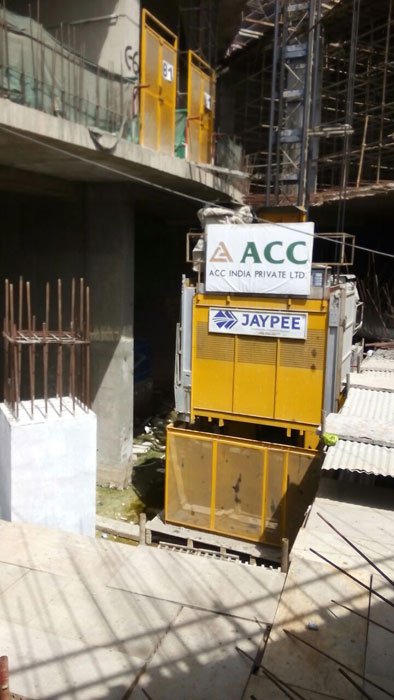

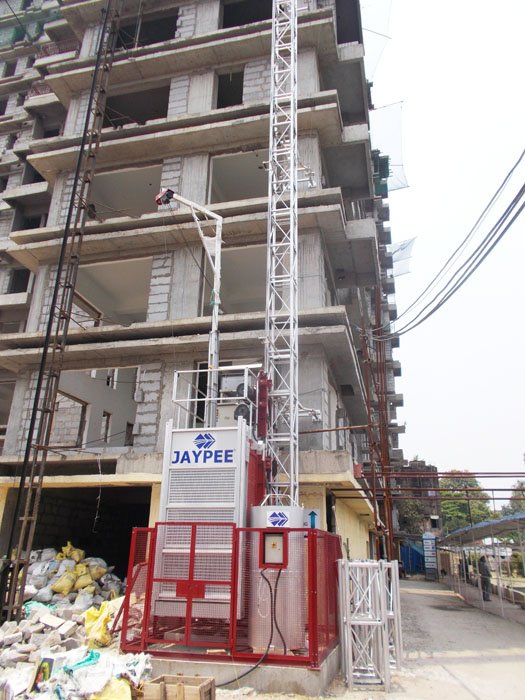

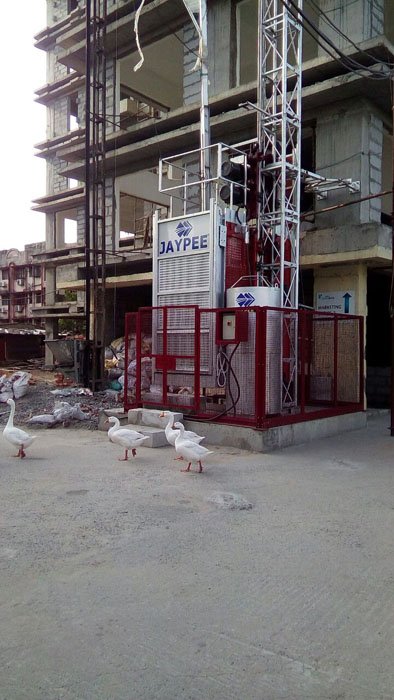

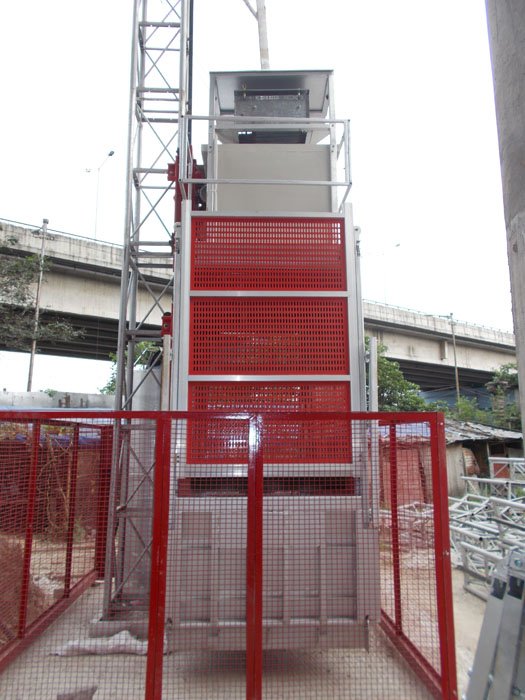

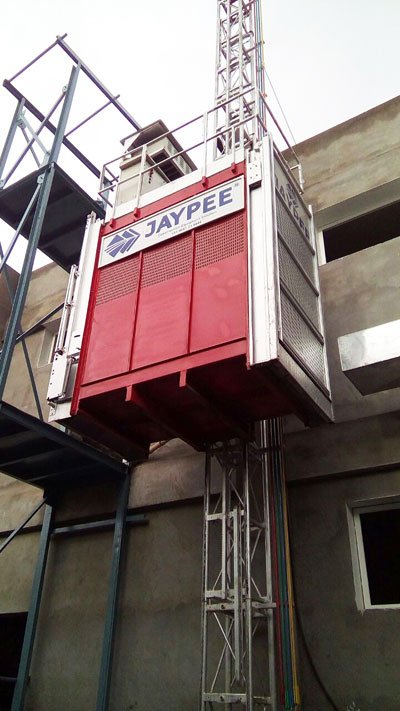

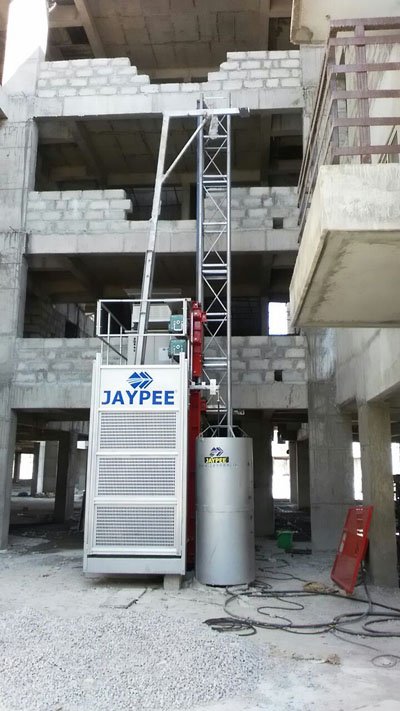

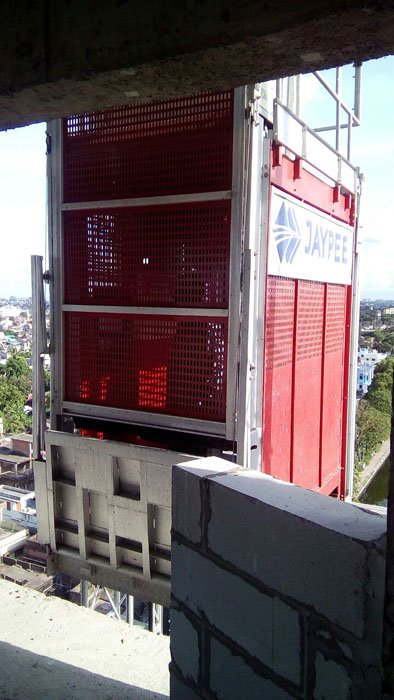

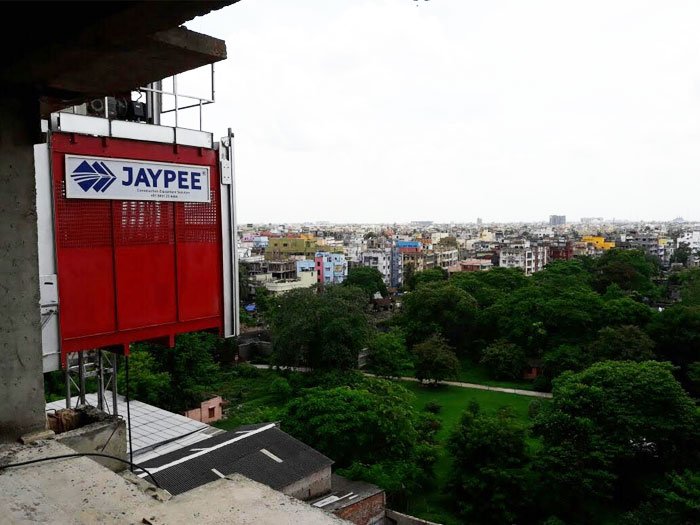

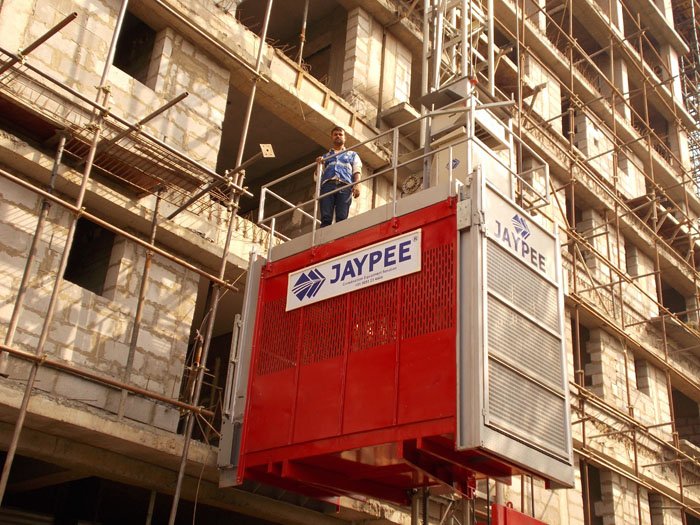

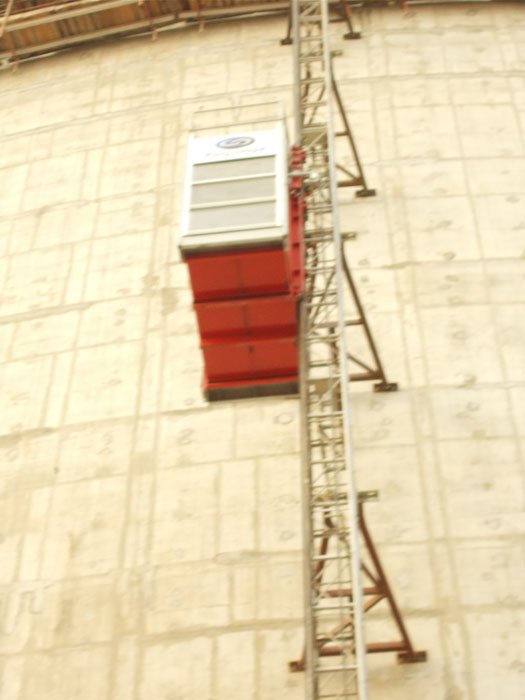

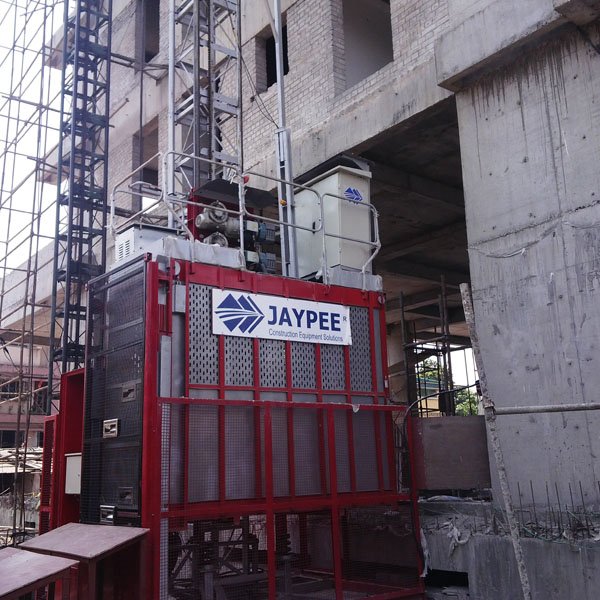

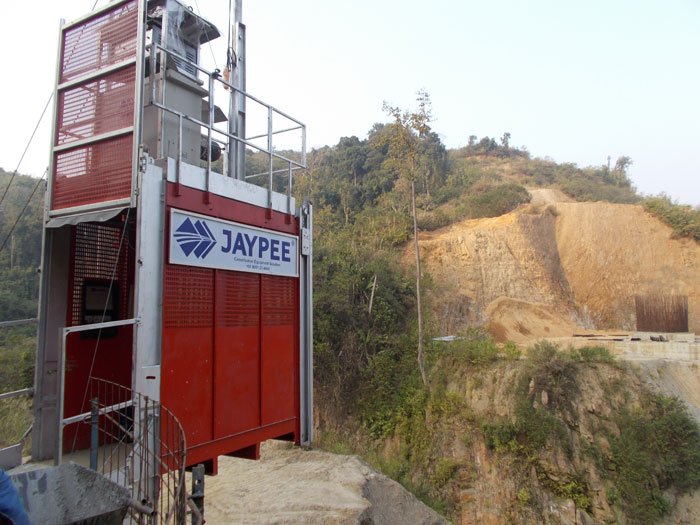

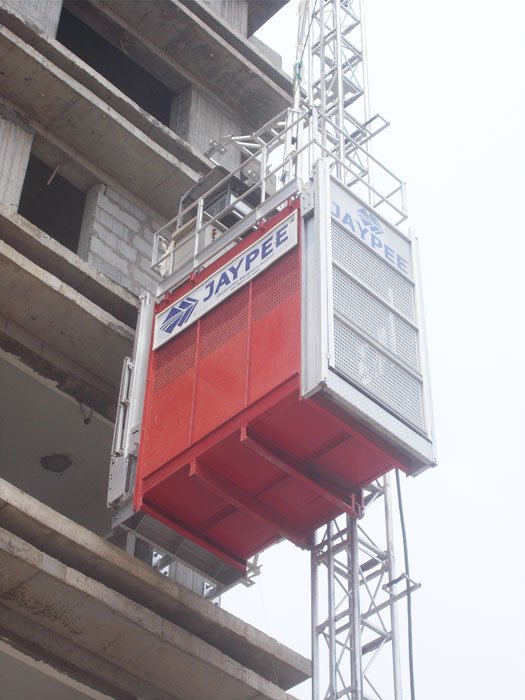

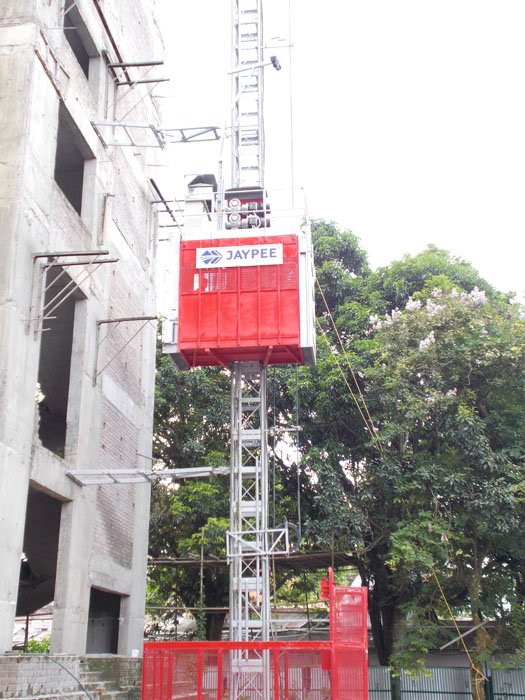

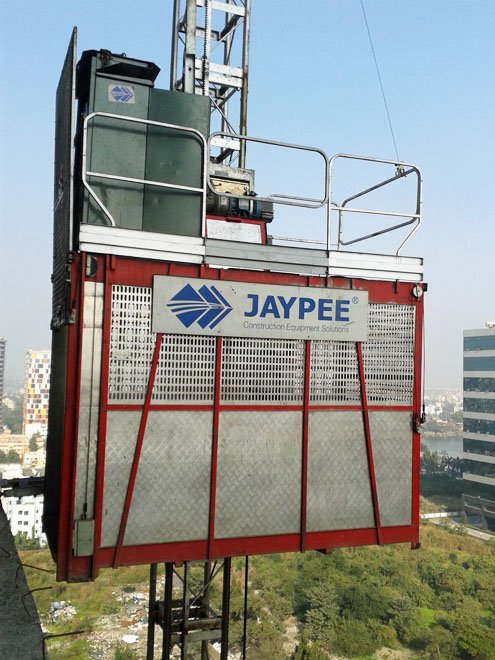

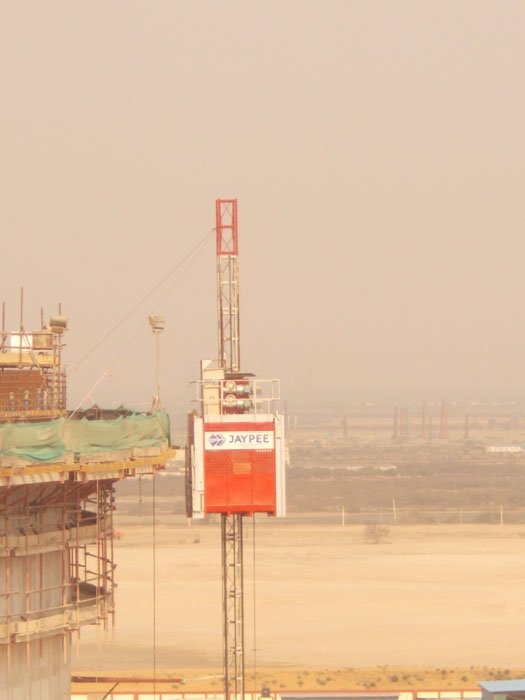

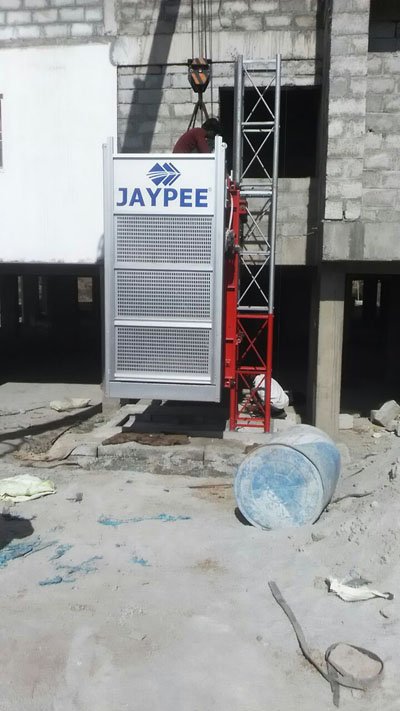

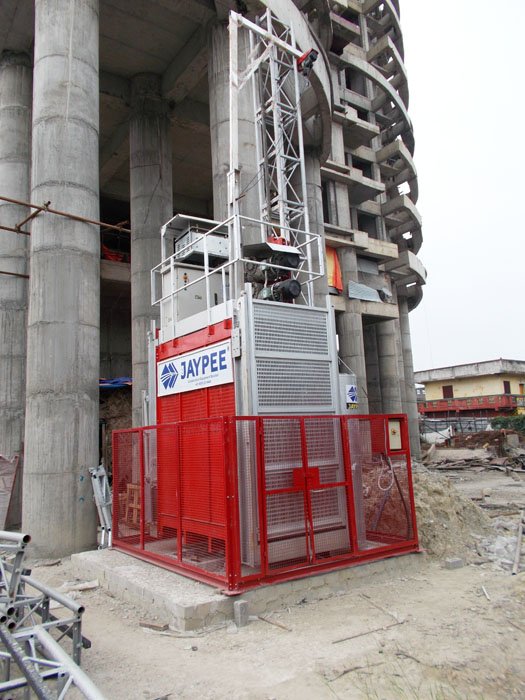

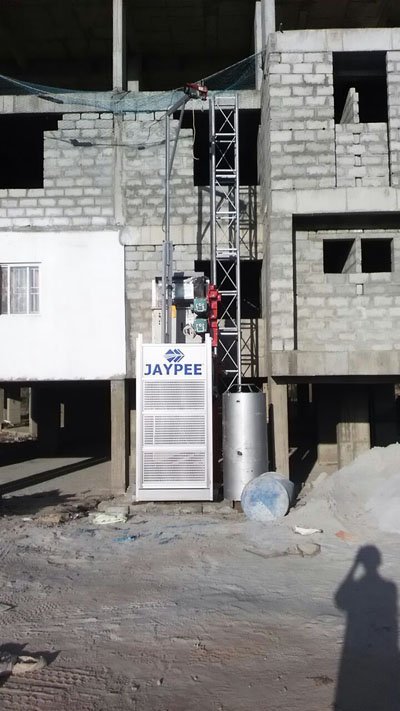

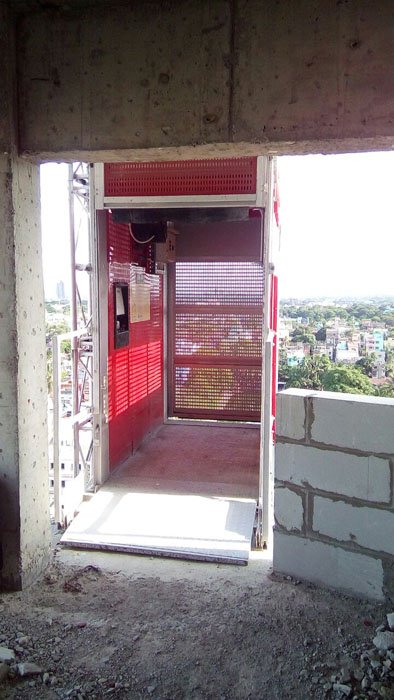

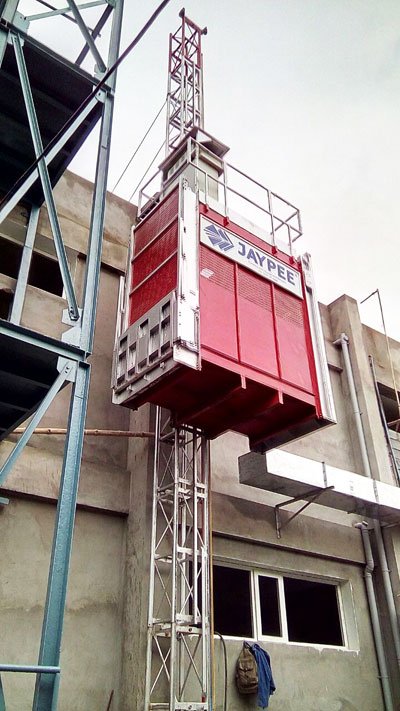

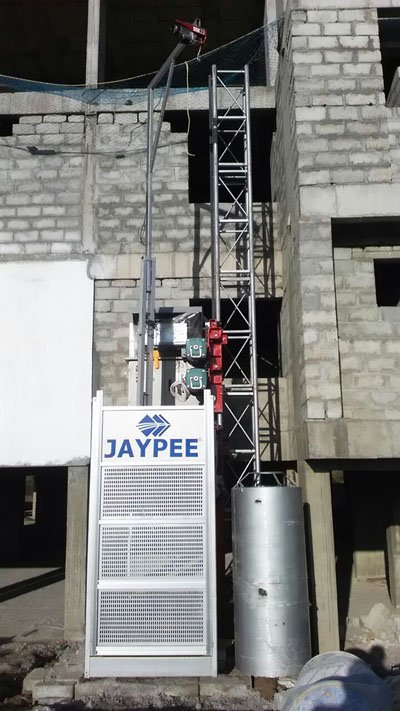

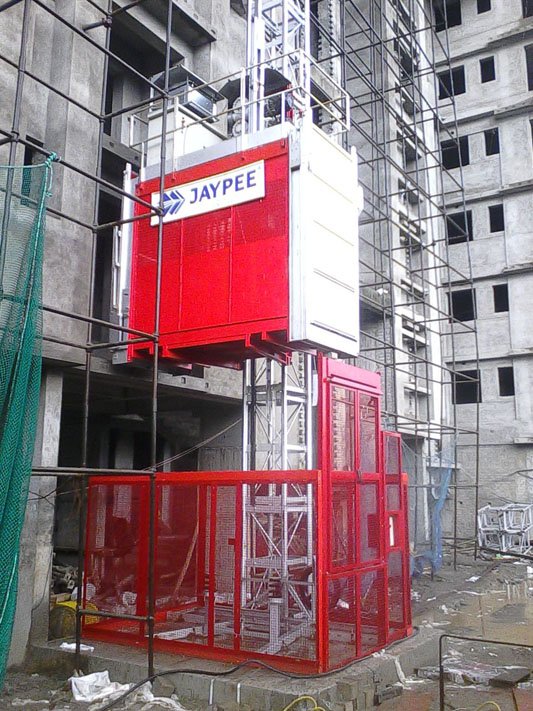

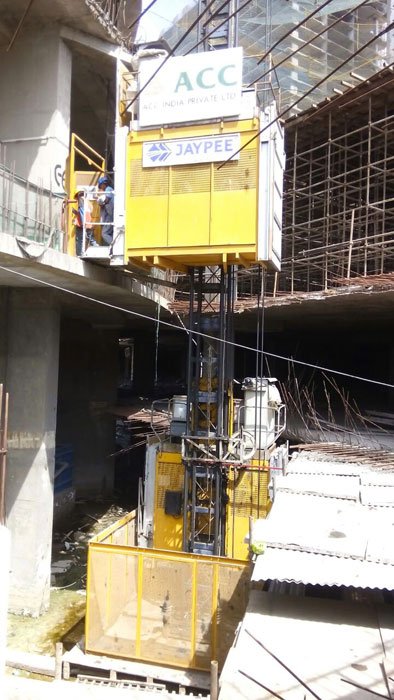

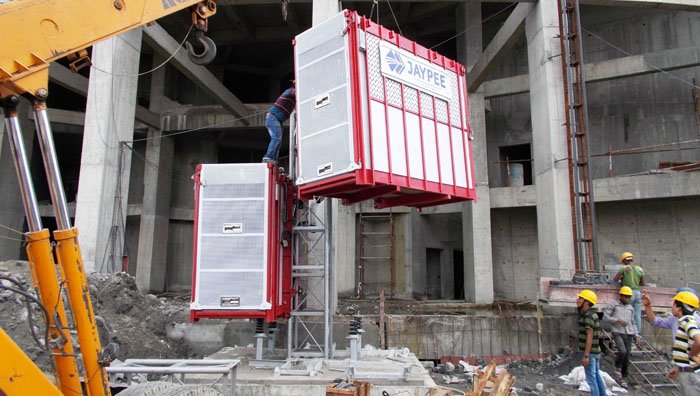

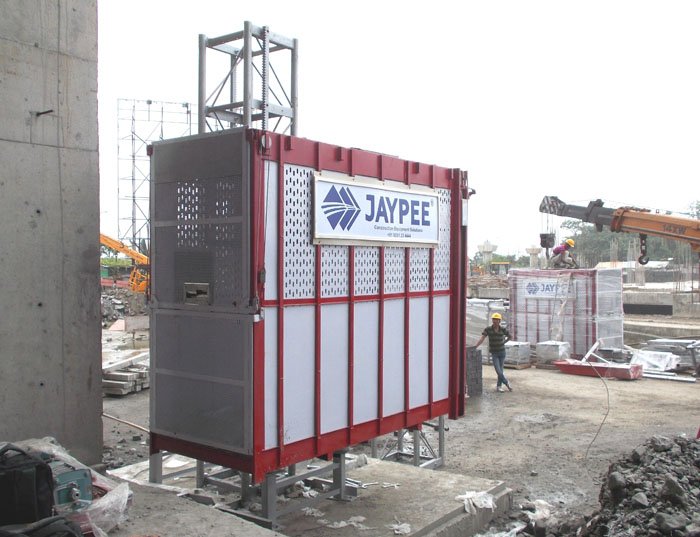

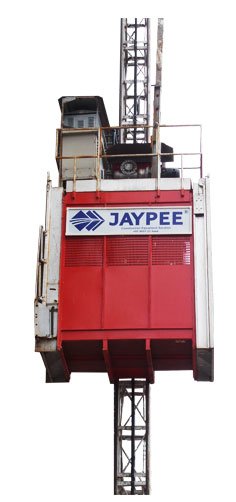

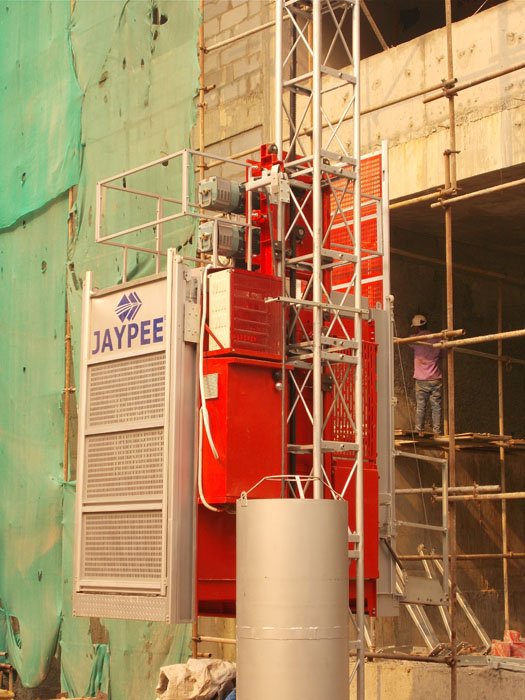

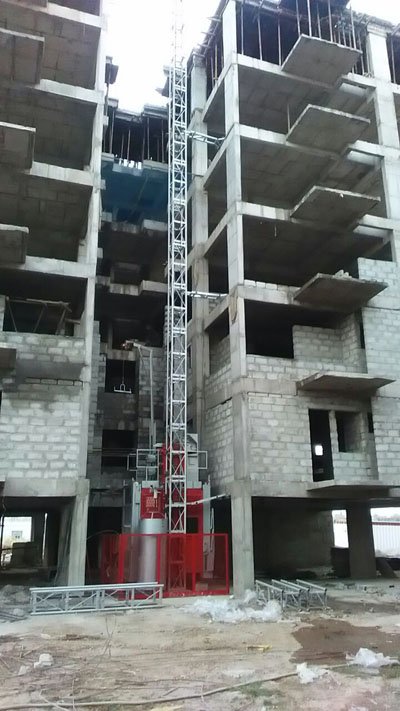

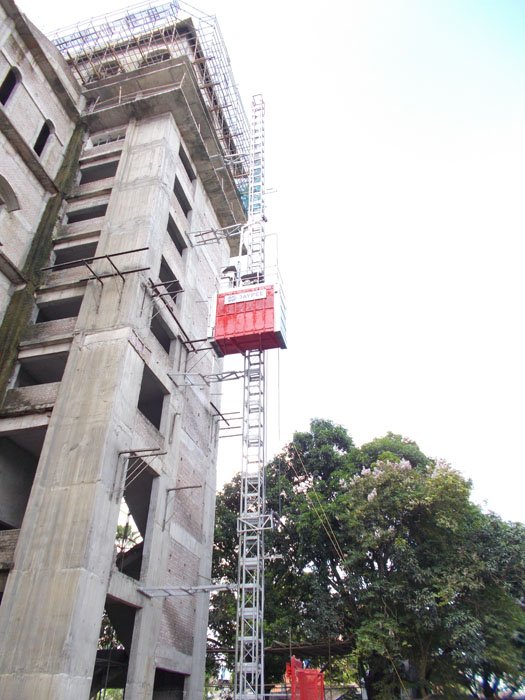

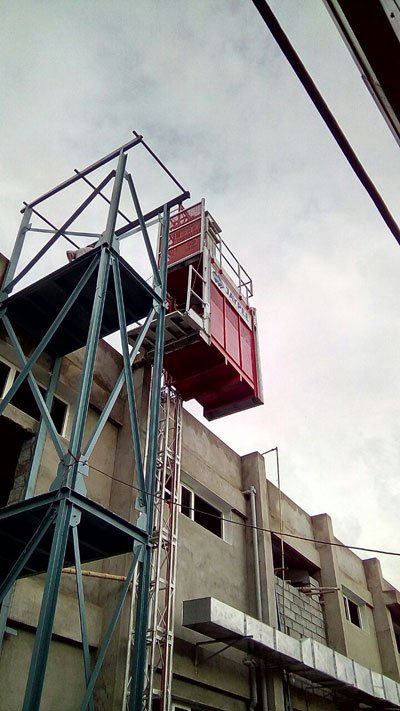

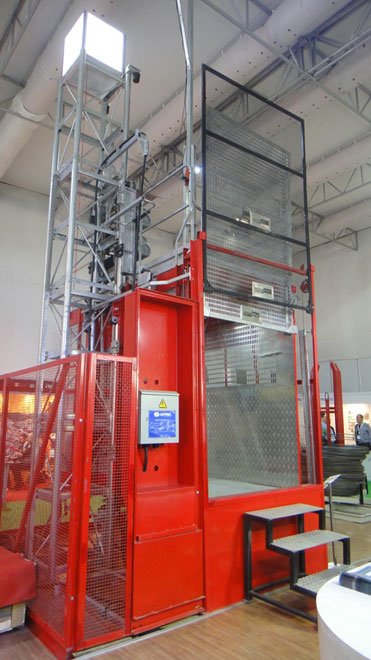

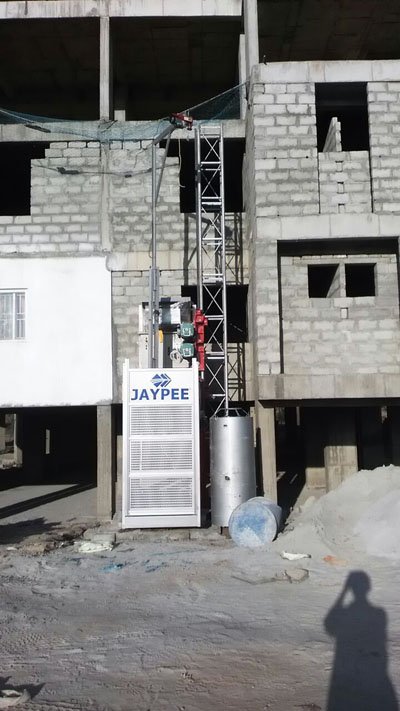

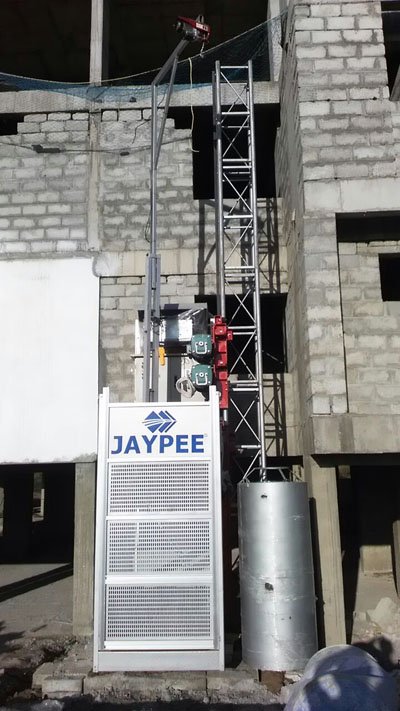

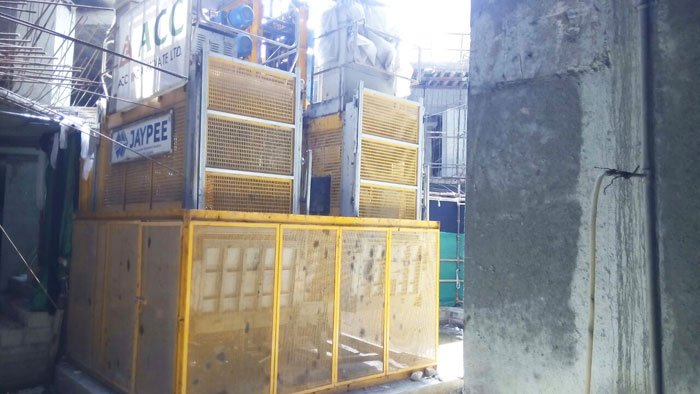

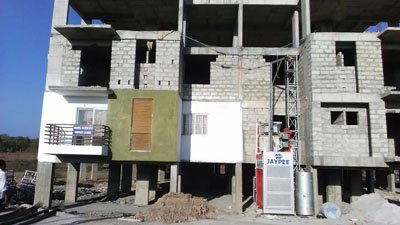

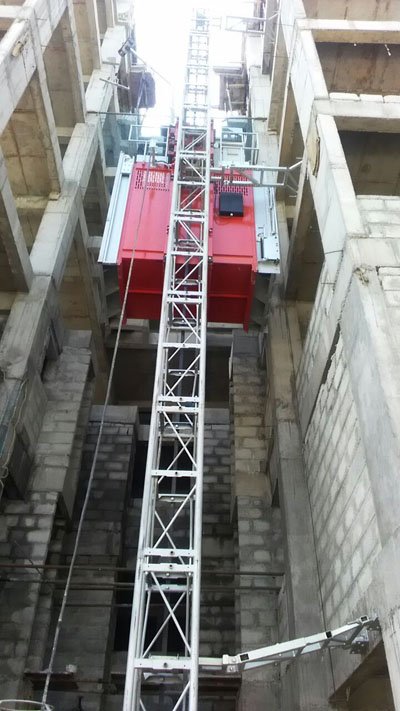

Passenger Cum Material HoistPassenger Material Hoist




Frequency Conversion Hoist

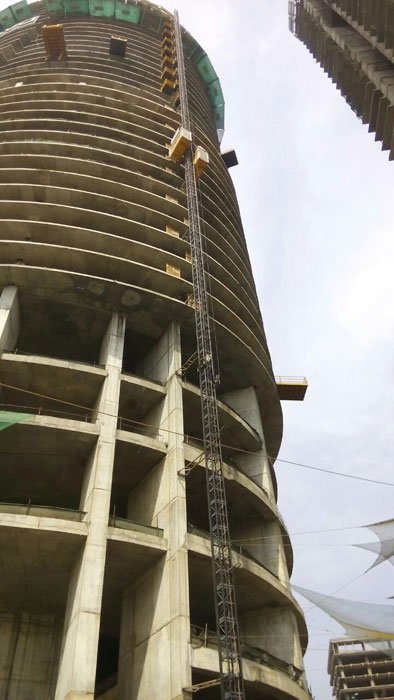

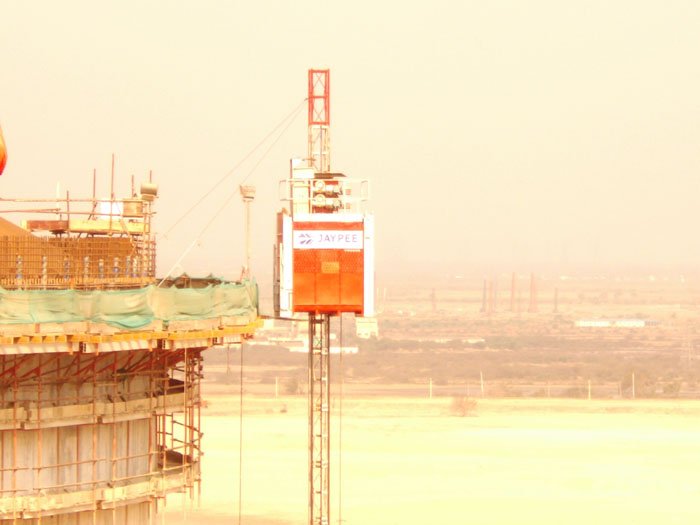

To serve the increasing demand for high-rise construction we offer the high speed VF hoist, with a max. lifting speed of 96m/min. A few salient features of these hoists are:

  • Adopts the most advanced VF speed control device and microcomputer programmable logic controller.
  • Step-less speed control helps eliminate the concussion during start-up and braking, steadies the operation and ensures automated levelling.
  • Adopts open loop VF control; the speed preci sion can reach +_ 2~3%. Realising the accu rate low speed positioning of the hoist, thus avoiding slipping during downward stopping of the hoist.
  • The VF system has current restriction function, suring lower current in motor start-up and reduces the concussion to power supply. This reduces the energy consumption are site.
  • The steadiness during operation, mitigates concussion to mechanical parts, reduces wears of rack, pinion and the brake, prolonging the life of these parts.
  • The VF system also has the over voltage protection, low-voltage protection, over-current, overload and anti-stalling protection functions.
