Overview

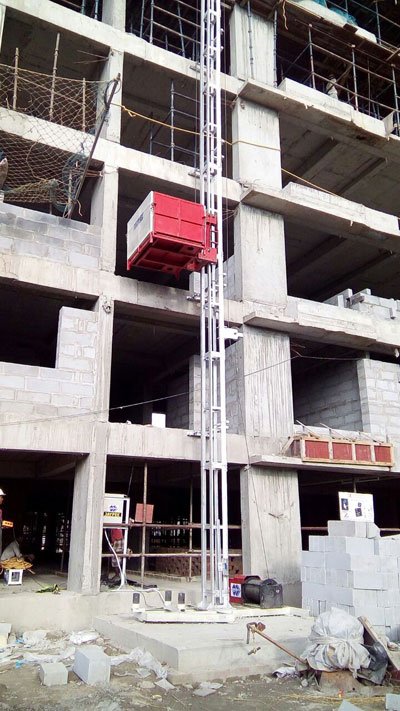

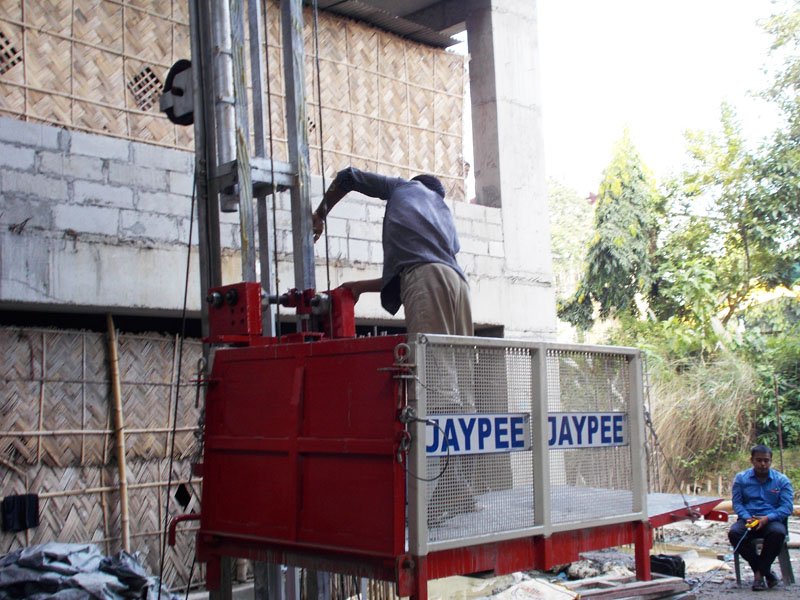

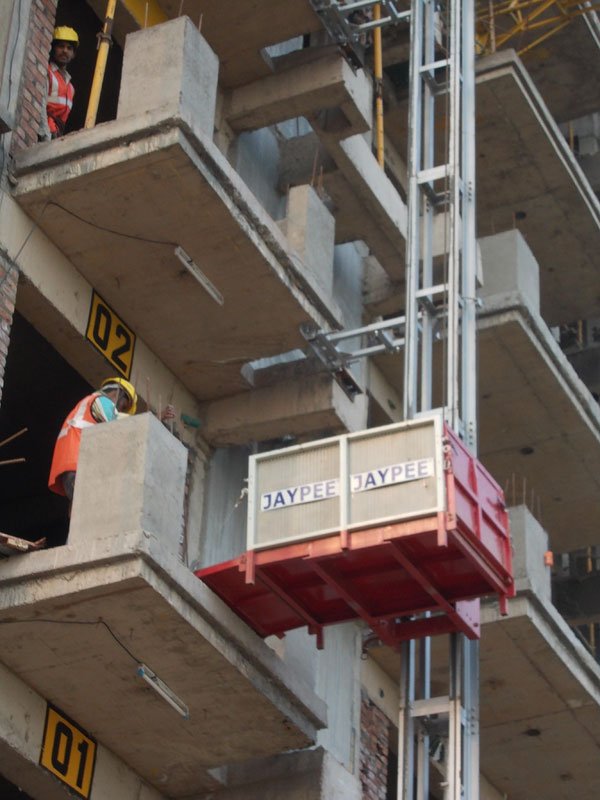

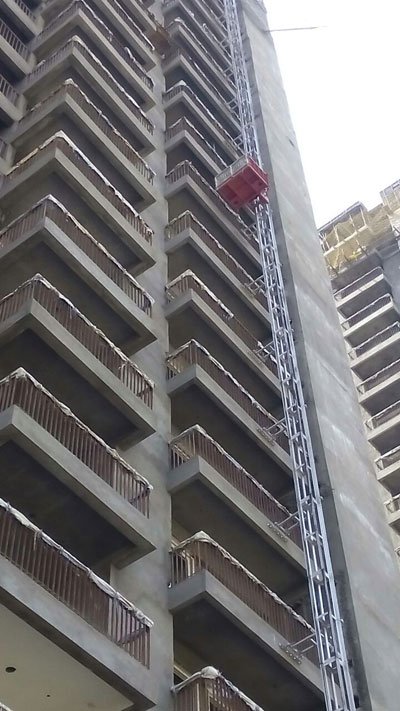

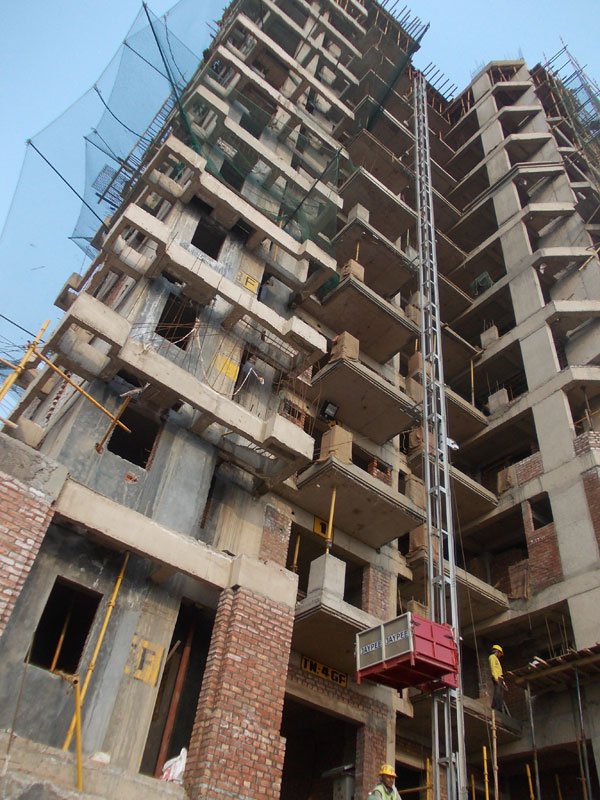

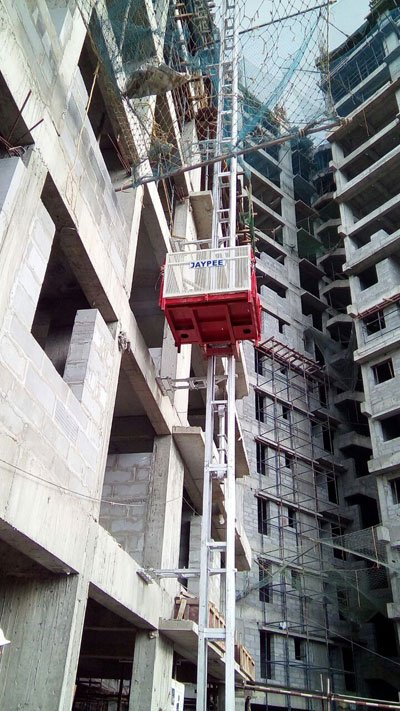

Latest in hoisting solutions by Jaypee the MFTH series is a multi-functional equipment for all your hoisting needs. The hoist can be used for carrying concrete and also finishing materials such tiles, fittings etc. With an optional rebar carrying attachment, users can now eliminate the need for installation of tower cranes at site.

Model	MFTH 100	MFTH 150
Loading Capacity	1000 Kgs (1 Ton)	1500 Kgs (1.5 Ton)
Max Height	70 Meters	120 Meters
Cage Size (L x B x H)	900 x 800 x 600 mm	1200 x 900 x 600 mm
Lifting Speed	30 Meters / min	30 Meters / min
Travel Type	Wire Rope	Wire Rope
Motor Power	7.5 HP (5.5 KW)	12.5 HP (9.3 KW)
Power Transmission	Heavy Duty Wire Rope Winch	Heavy Duty Wire Rope Winch
Mast & Cage Finish Wall Ties	Shot Blasted, Zinc Chromate Primer & High Quality Enamel Paint
Self Erecting Mechanism	Included	Included
Safety Features	Wire Rope Snapping Device	Wire Rope Snapping Device
	Slack Rope Safety Device	Slack Rope Safety Device
	Lower & Upper Limit Switch	Lower & Upper Limit Switch
Optional Attatchment	Concrete Bucket - 0.4 cu/-1 ton.	Concrete Bucket - 0.4 cu/-1 ton

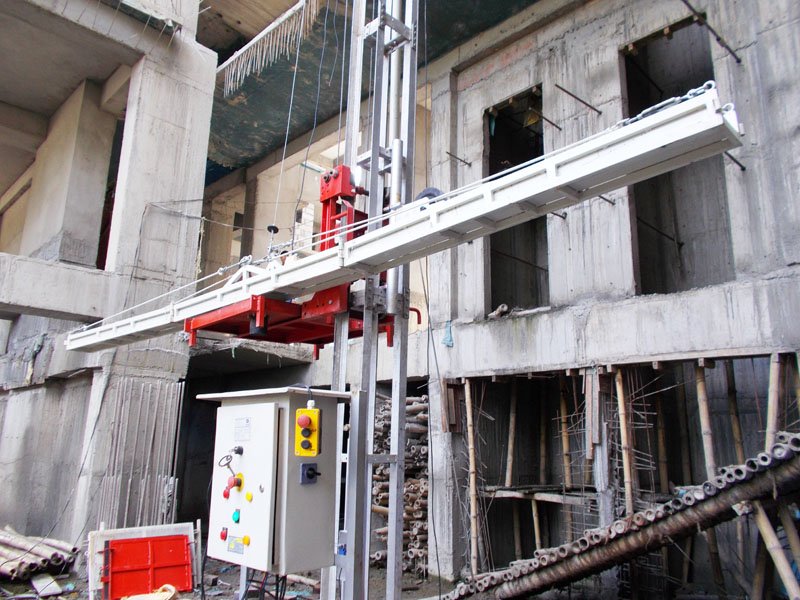

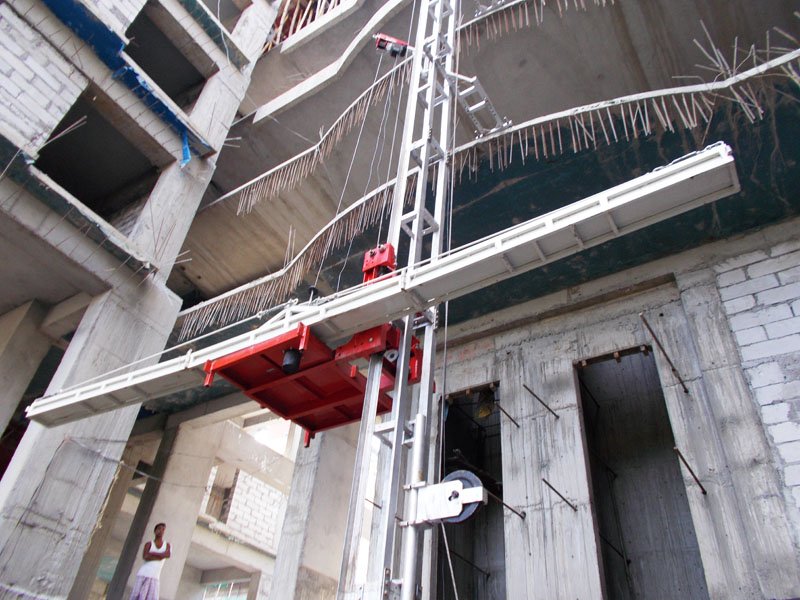

Optional Attatchment	Vertical Rebar Attachment upto 6 mtr. long	Vertical Rebar Attachment upto 6 mtr. long
Optional Features	FC Drive	FC Drive

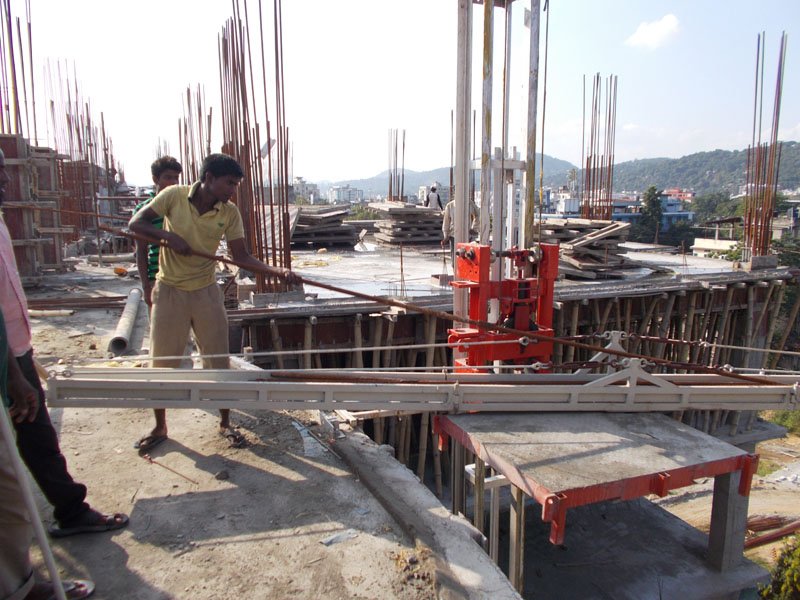

	Horizontal Rebar Attachment 6 meter	Horizontal Rebar Attachment 6 meter
	Concrete Bucket Attachment	Concrete Bucket Attachment
