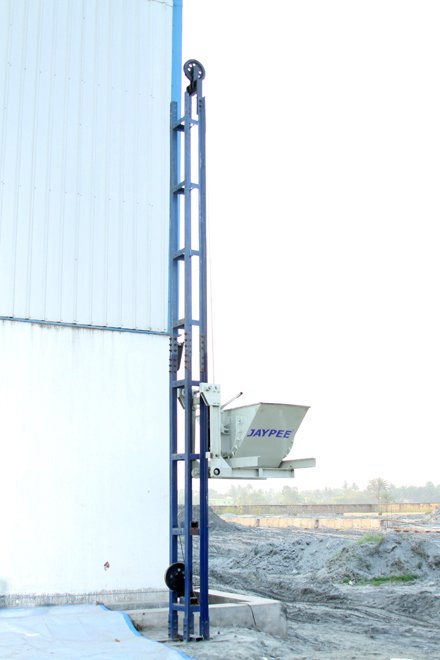

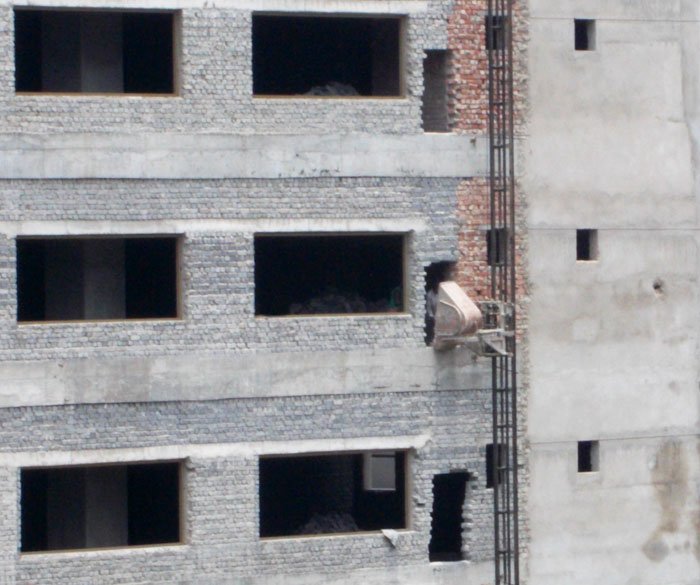

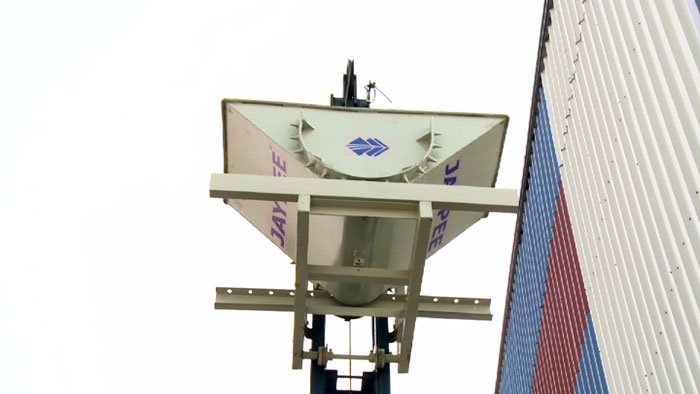

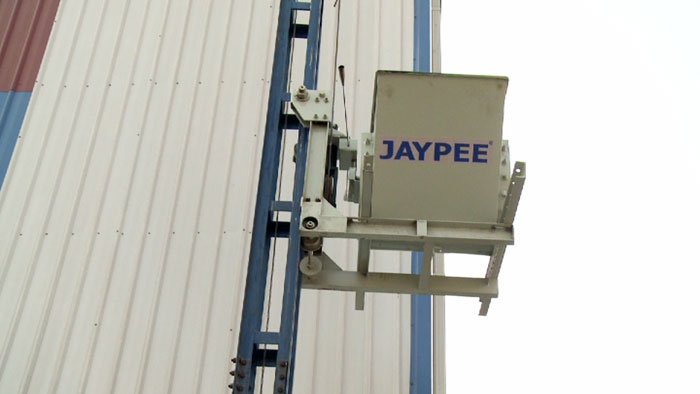

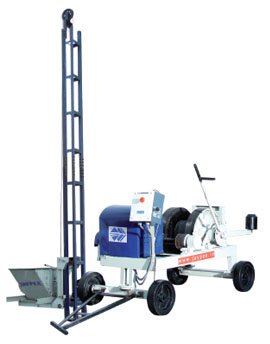

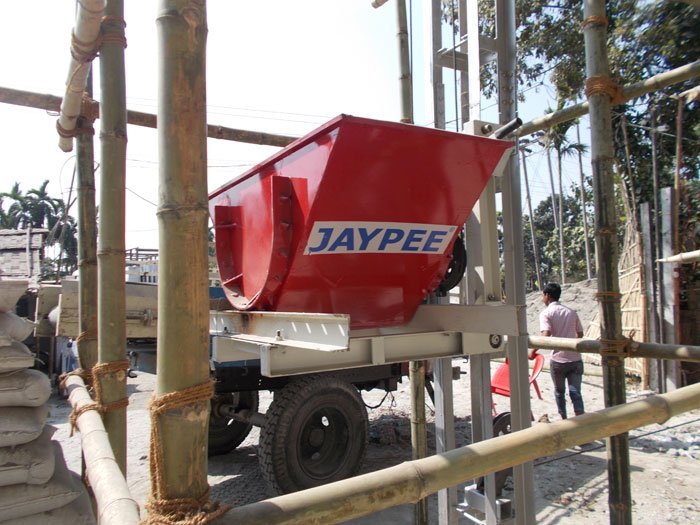

Jaypee® Tower Hoist / Builder Hoist is specially designed to lift material to various heights at Construction Sites.

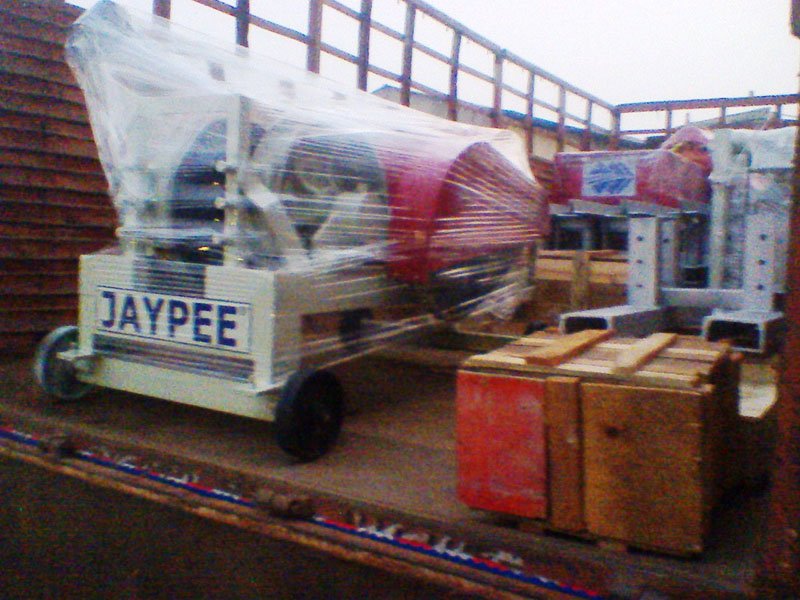

Most of the structure is fabricated in 3m length for easy transportation and assembling at site. With the use of high quality fabrication and anti twisting straightened steel, the mast sections are built for a longer life span.

Jaypee® has successfully erected a 2 ton winch upto a height of 140mts.

Model	JTH - 1000 E	JTH - 1000 D	JTH - 2000 E	JTH - 2000 D
Capacity	1 Ton	1 Ton	2 Ton	2 Ton
Material Carrying Capacity (Approx)	750 Kg	750 Kg	1500 Kg	1500 Kg
Mast Type	Square Mast	Square Mast	Square Mast	Square Mast
Wire Rope	10 mm, 6 Core Steel Wire	10 mm, 6 Core Steel Wire	12 mm, 6 Core Steel Wire	12 mm, 6 Core Steel Wire
Trolley	Heavy Duty MS Channel with Guide Rollers	Heavy Duty MS Channel with Guide Rollers	Heavy Duty MS Channel with Guide Rollers	Heavy Duty MS Channel with Guide Rollers

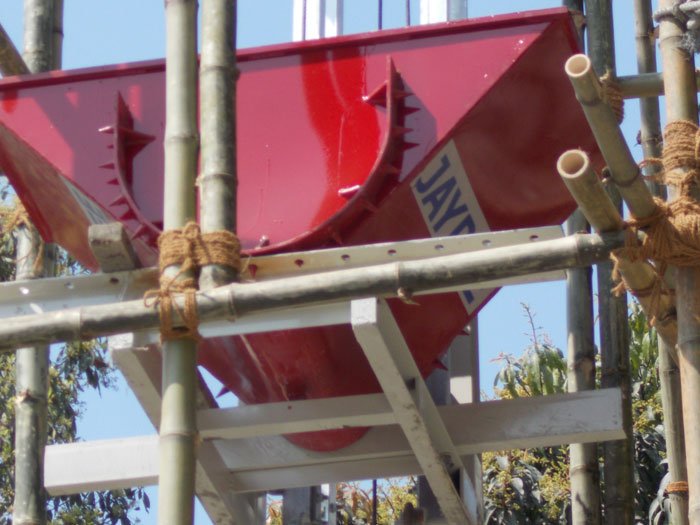

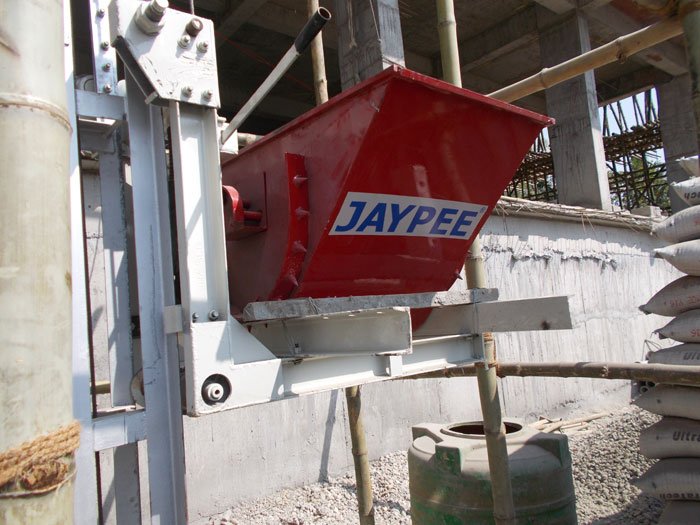

Bucket Volume	0.3 m³	0.3 m³	0.4 m³	0.4 m³
Maximum Working Height	100 m	40 m	125 m	70 m

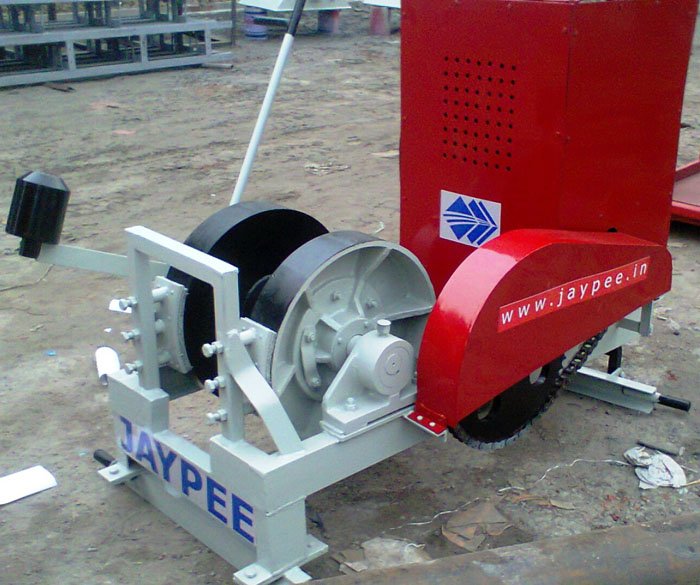

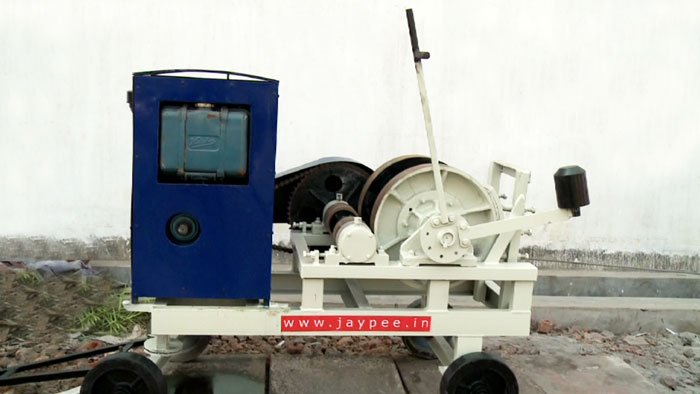

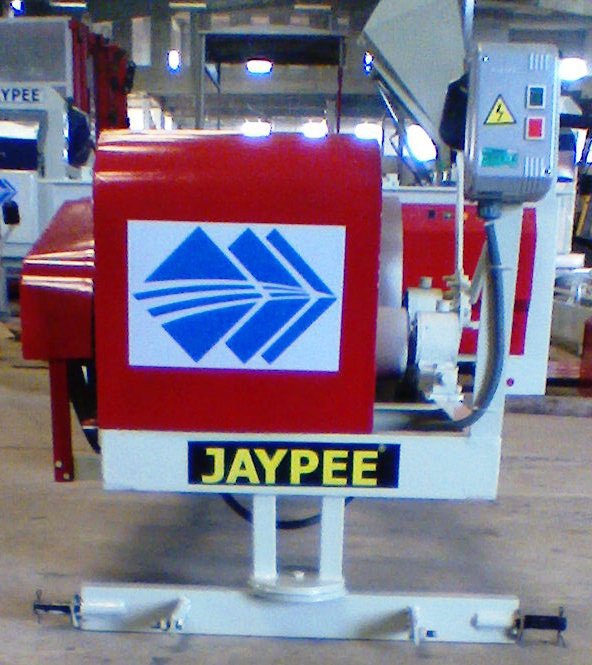

Power Rating	10 HP Electric Motor	10 HP Diesel Engine	15 HP Electric Motor	16 HP Diesel Engine
